NeuroFocus XR

NeuroFocus XR is an AI-based Neurofeedback therapy for ADHD adults in Mixed Reality.

The project was part of my Masters Thesis at the Royal College of Art London.

Recently won the Design Intelligence Award 2024 Honorable Mention

NeuroFocus XR empowers users with live brainwave feedback and visual stimuli, helping them self-regulate their emotions and actions in real-time.

They can be aware of their brainwave patterns to choose tasks that are suitable for their current mental state, thus optimizing their cognitive performance and reducing stress levels.

TIMELINE

7th May - 24th July 2024

This was my Masters Thesis project guided by the Royal College of Art London MA Design Product's Senior Tutor Alex Williams.

PROCESS 🖊️📋👨🏻‍💻

Research

Identifying issue

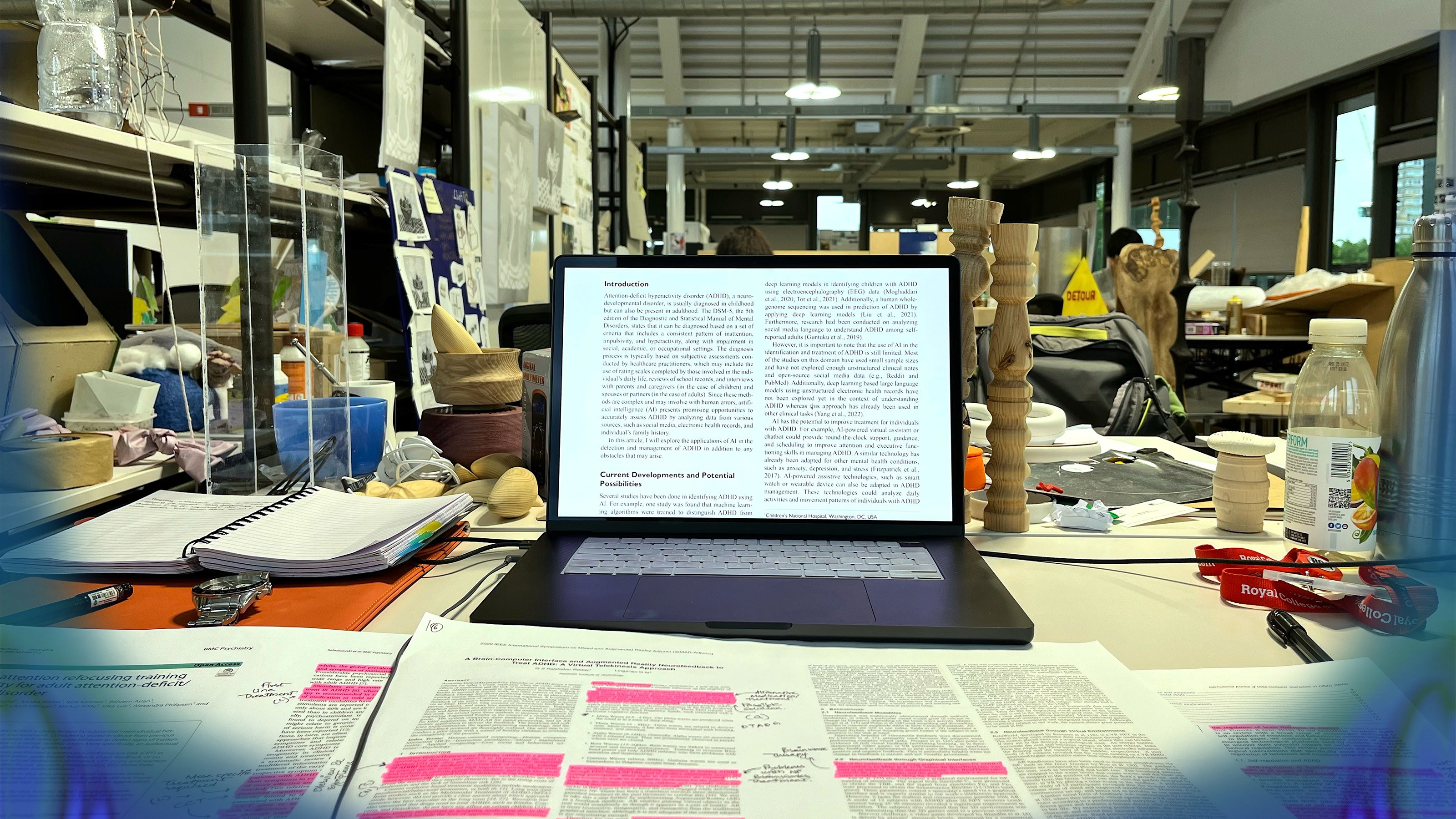

Secondary data
Understanding solutions
Expert's insights

Integration

User persona
User journey
Information
architecture

Crafting

Moodboard
High fidelity
User Interface
Visual Stimuli

Prototyping

Proof of concept
Coding internal
Components
XR prototype

Reflections

User testing
Next steps
DIA HM RCA 2024

DOMAINS

User Experience Design
User Interface Design
Spatial Development
Creative Technology & IOT
Human Cognition
Behavioral Therapy

RESPONSIBILITIES

User Experience Research
Sketching
Prototyping
AI Integration
Visual Interaction
Mixed Reality Design

TOOLS

Figma
Adobe Creative Suite
Unity
Touch Designer
ESP-32 & Max 30102
Protokol

ADHD is a prevalent neurological disorder that affects 5-10% of the world’s children and often persists into adulthood. These traits lead students to perform poorly in academics, and has also been observed that when carried forth to adulthood, it can lead to involvement in crimes.

Medication and Cognitive-behavioral therapy (CBT) are the primary treatment options for ADHD. Psychopharmacological treatment such as the prescription of Methylphenidate is not always effective and may have serious side effects.

Unfortunately, these primary treatment options have potential limitations, such as medication side effects, lack of behavioral improvement, high costs, and major time commitments.

Long waiting lists for ADHD assessments, particularly in public healthcare systems, can significantly prolong the diagnostic process.

Moreover, people are hesitant in accepting medication due to adverse side effects, which include the loss of appetite, anxiety, insomnia, headaches and irritability.

Some individuals may have to wait months or even years to be evaluated by a specialist.

ADHD BRAINWAVES

COGNITIVE BEHAVIOUR THERAPY

ADHD SYMPTOMS & THERAPY 🧠🧘🏻💡

UNDERLYING QUESTIONS 🙋🏻‍♂️👀❓

To outpack the contributing factors, I had look deeper and answer the underlying questions guided by Alex:

How do they operate?How do they perceive their environment, things around them?
What tasks they do well? And for how long?
What’s their productivity like? Are they any different?
What if we liberate ADHD people of their weighed down medication plans?
What if we let their creativity run wild and free?
How do you make these people realize their full potential?

By 'they' here I meant adults with ADHD symptoms (diagnosed or undiagnosed) who unknowingly suffer, leading to a decline in their workplace productivity.

WORK STYLE

MINDFULNESS

EXPERT INSIGHTS 🧐🧑🏻‍⚕️🔑

Somatic work, Meditation, Mindfulness movement are some of the initial harmless treatment options for ADHD people.

After Neurofeedback therapy, patients see themselves as improved beings in terms of focus, self-regulation of emotions, understanding of the situations, better social engagement, control in anger issues, and more.

However, existing Neurofeedback therapies are expensive, requiring long, and consistent sessions.

The games are not engaging enough, graphics are poor quality, are only appointment-based, require Neurofeedback therapist at all times throughout the therapy, and have mixed feelings among people.

New emerging ways have the potential to change the mindsets of people towards the methodologies and the technology in which they can be used.

USER PERSONA 🩻 👩🏻‍🔬 🚀

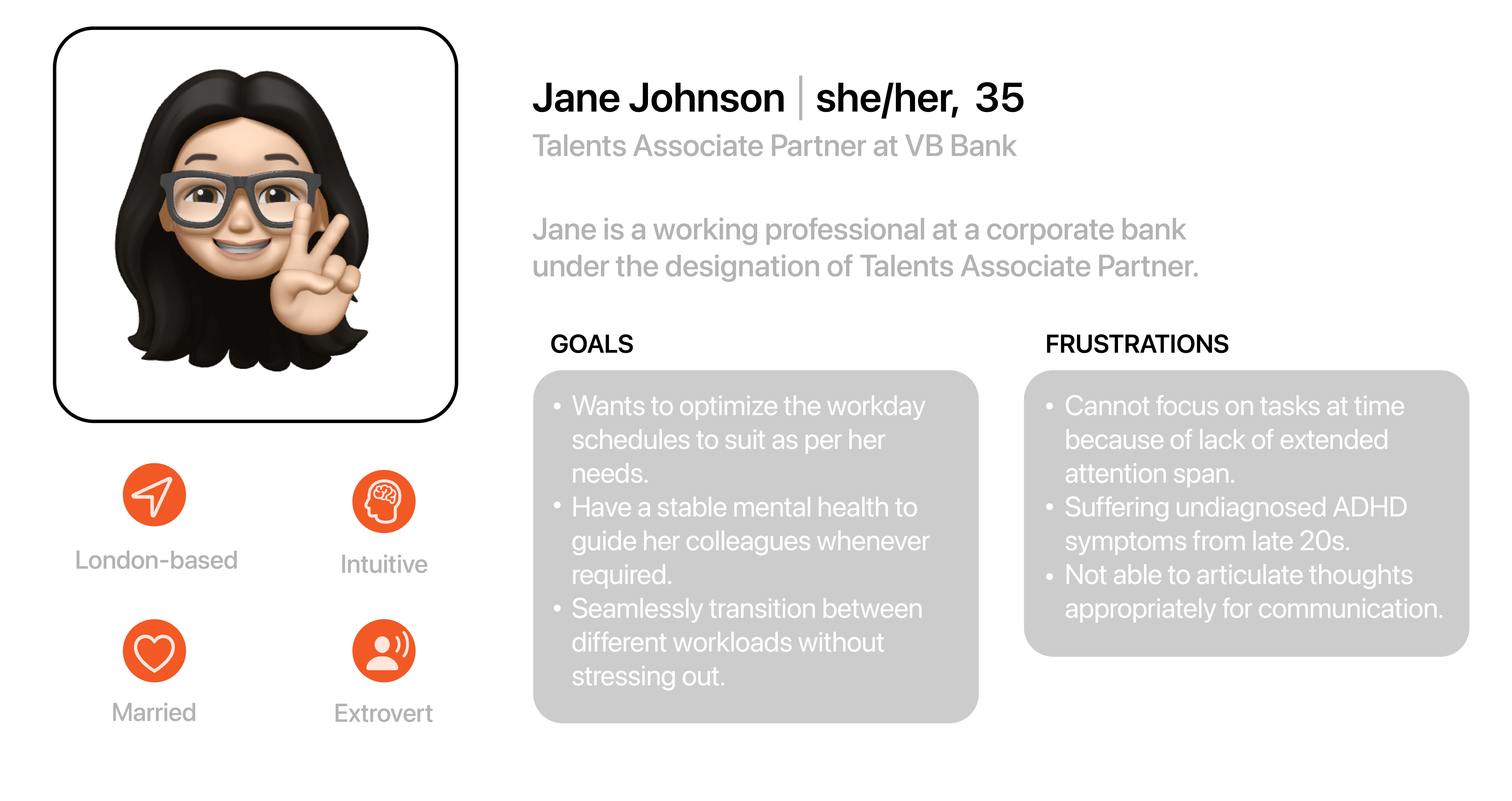

By developing a user persona I understood what would the end users really value. Since they were adults, there are a lot of different professions and creating personas for each would not have been an ideal choice. Hence, I choose a median and tried addressing most of their workplace issues. Both physical and mental.

USER JOURNEY 🚗 👩🏻‍💻 👓

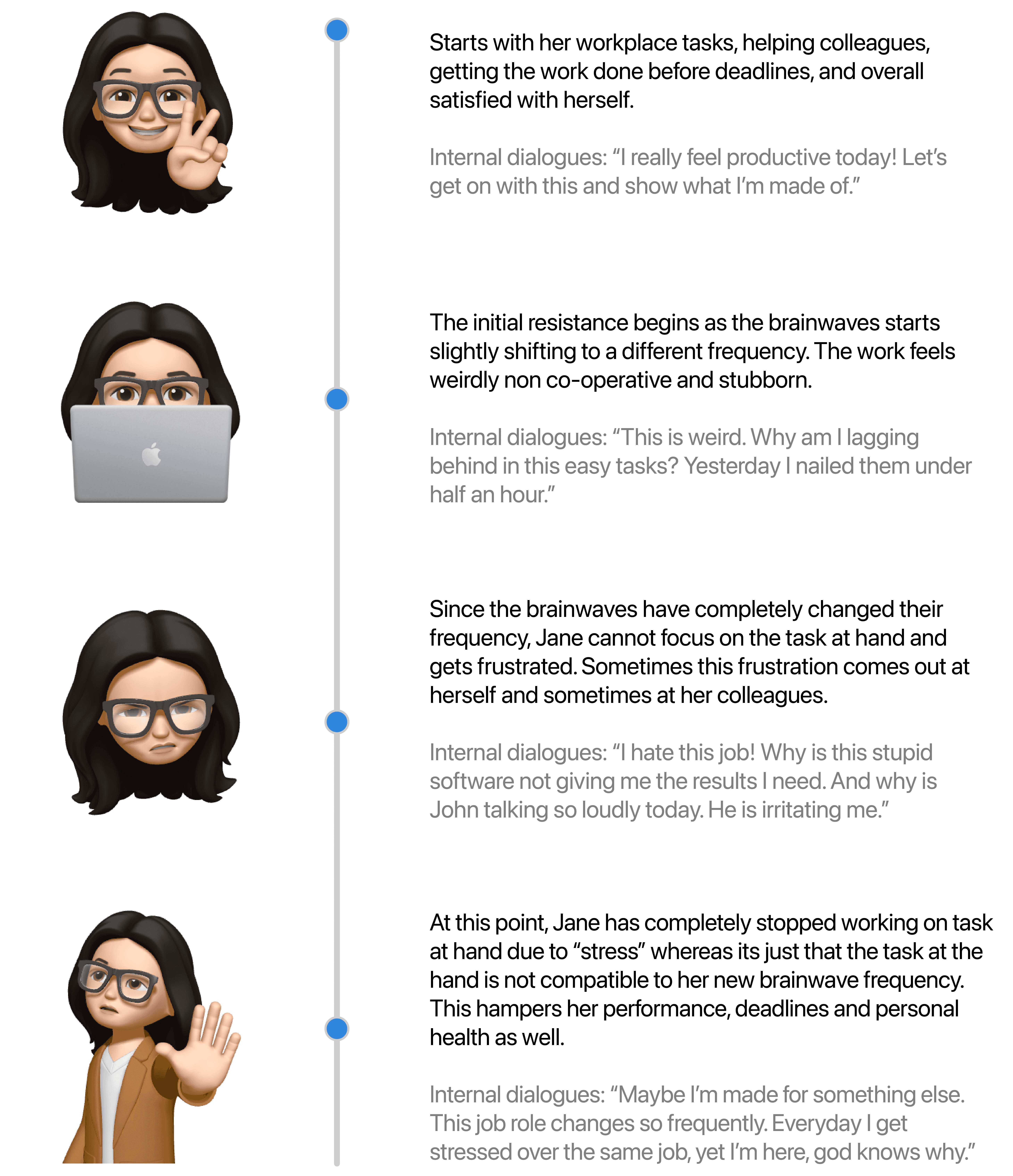

For the user journey, I explain how and where all does she encounter problems on day-to-day basis. May it be technical, or mental issues, all of them affect our brainwave patterns and influence to change.

EMOTIONS 🥹 🌈 👻

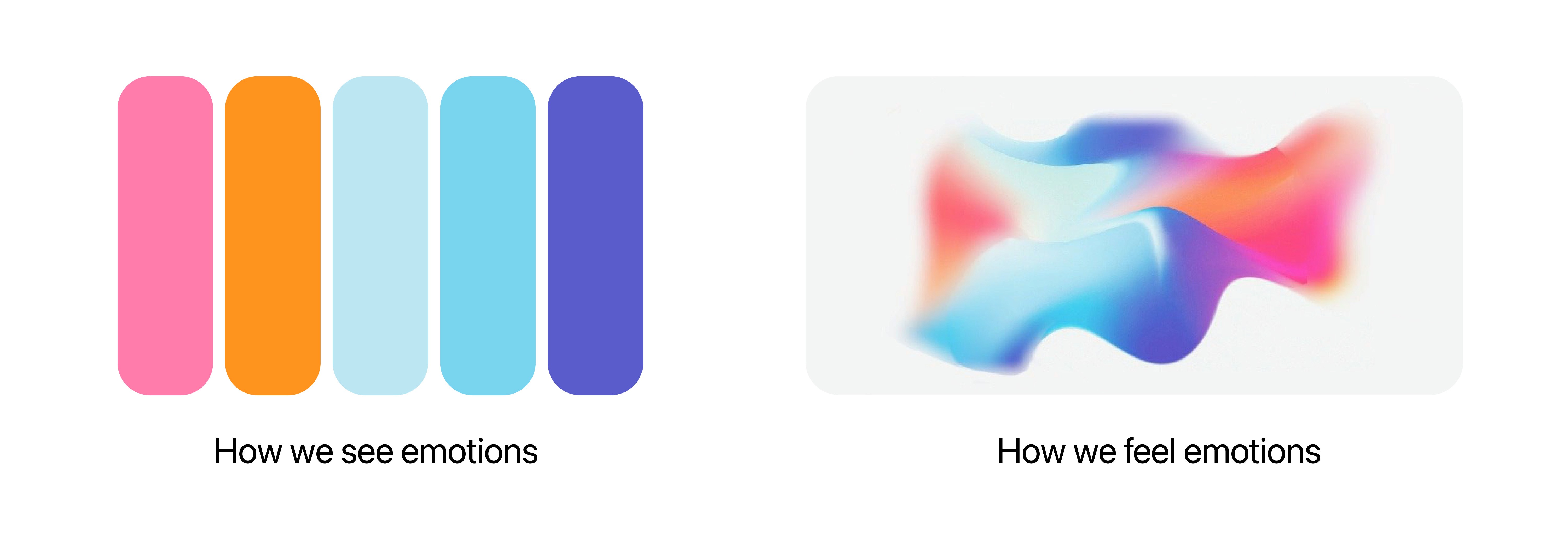

We human beings are emotional creatures. Throughout history, we have slowly understood and categorized each of them. But what we don't understand is that's not how we feel emotions. We experience them as a continuous wave.

Here, I have categorized each emotion from Care, Joy, Guilt, Fear and Sadness. And displayed how we actually experience them.

MOODBOARD 🧑🏻‍🎨👀👨🏻‍💻

The Moodboard served the purpose of a reference to keep in mind some visual cues while designing the main platform. Since Mixed Reality is a combination of physical and digital aspects, it was tricky to find the balance, especially when dealing with brainwaves and color.

HIGH FIDELITY 🧭🔪📊

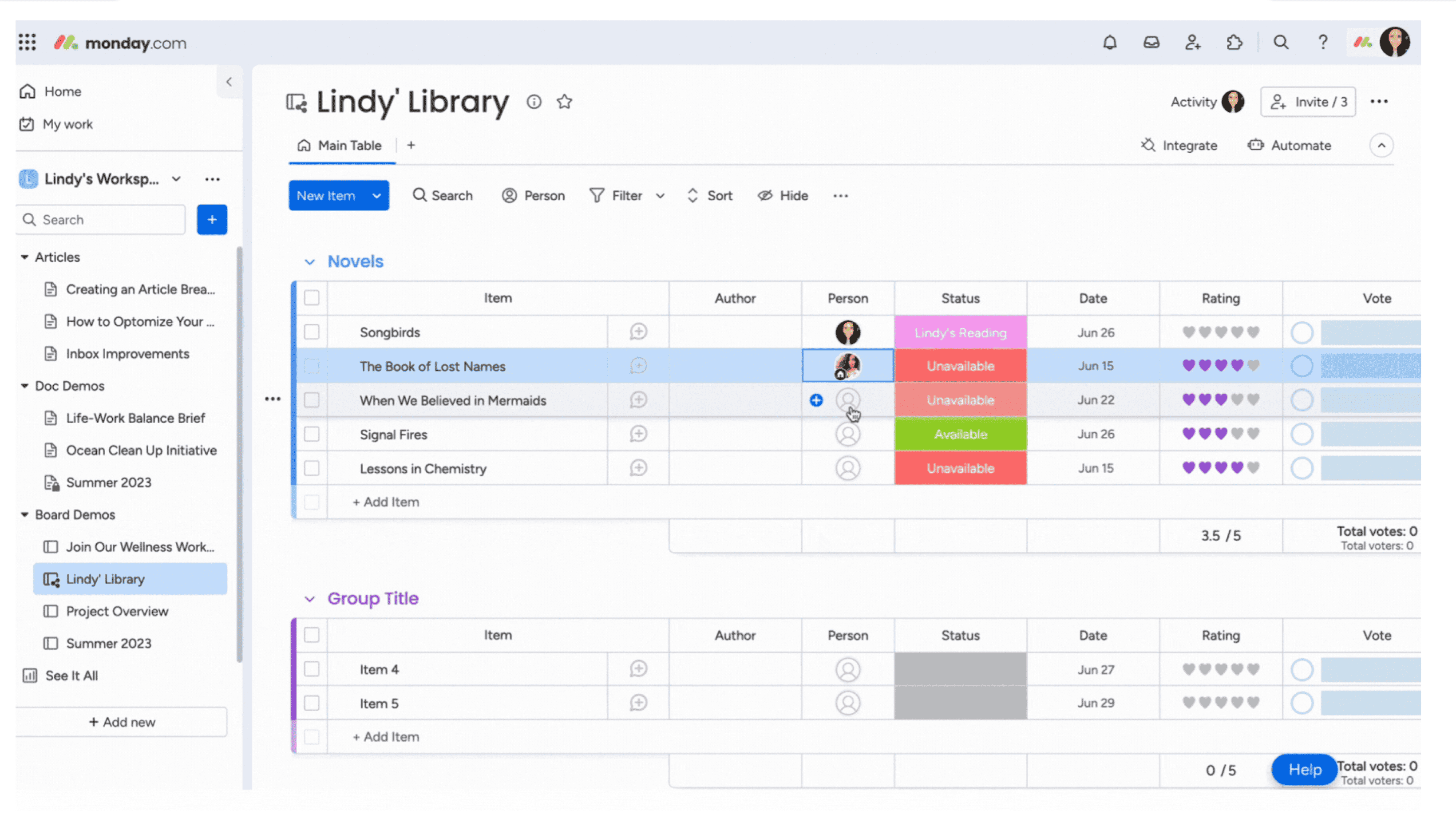

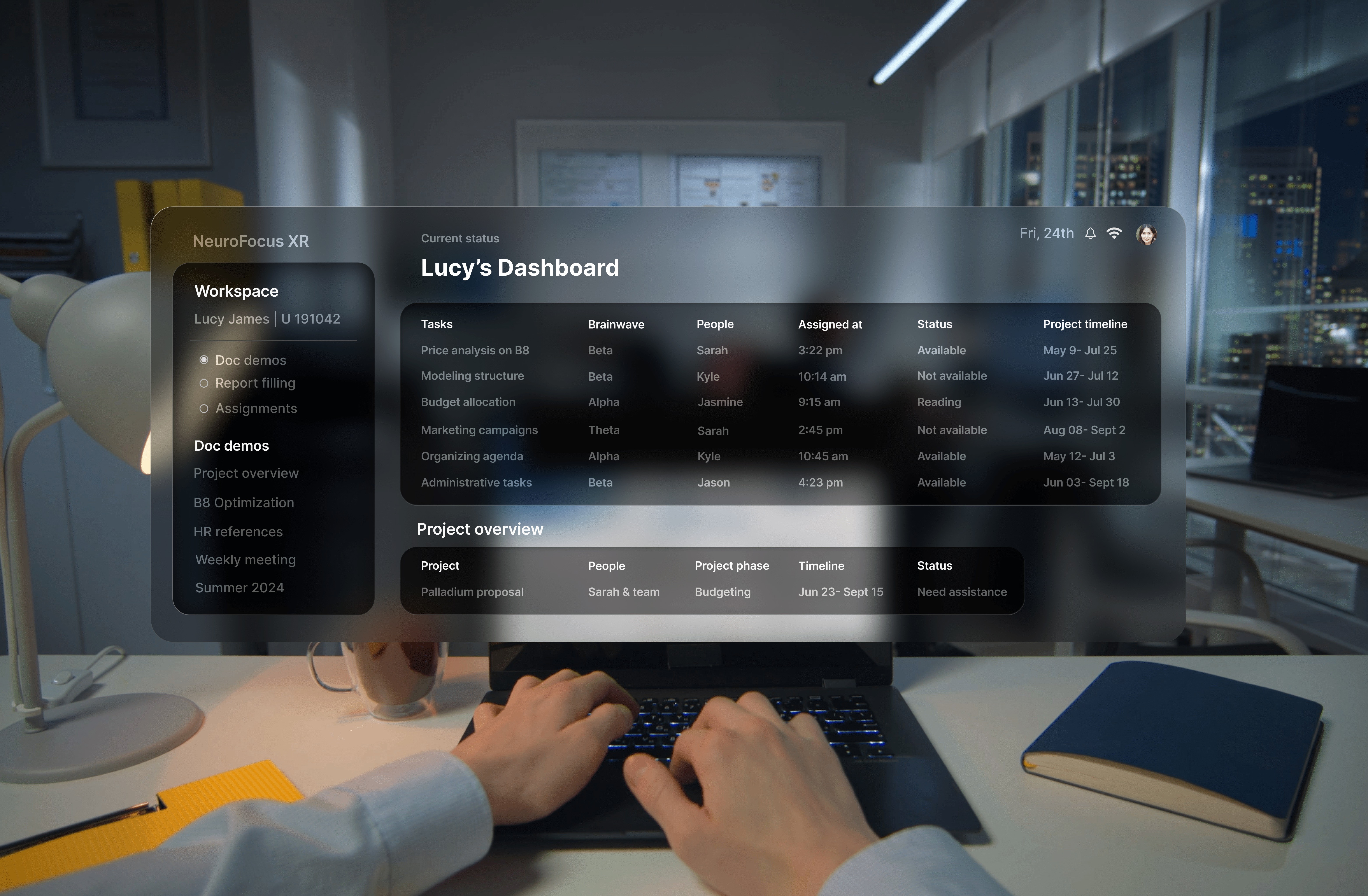

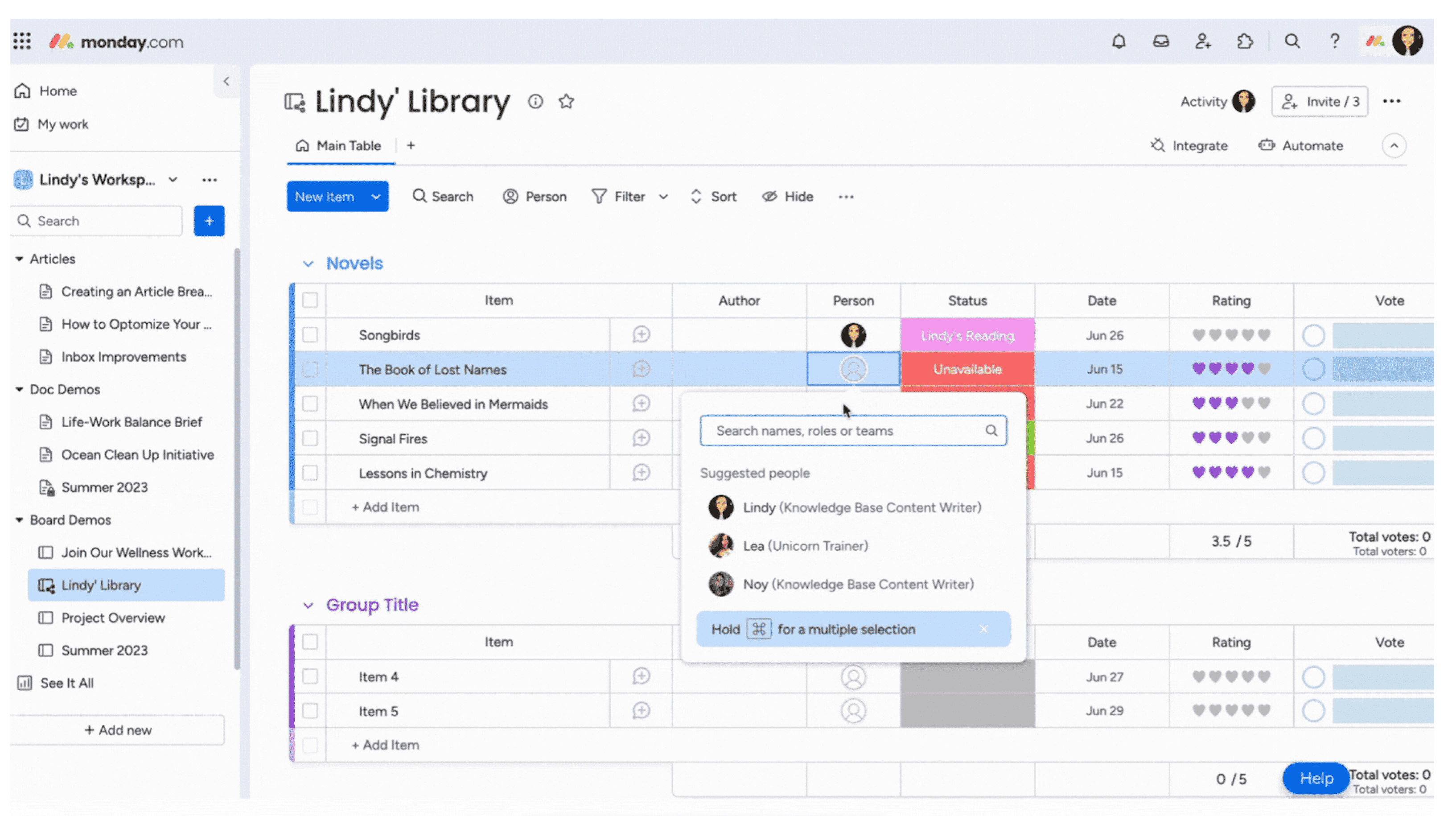

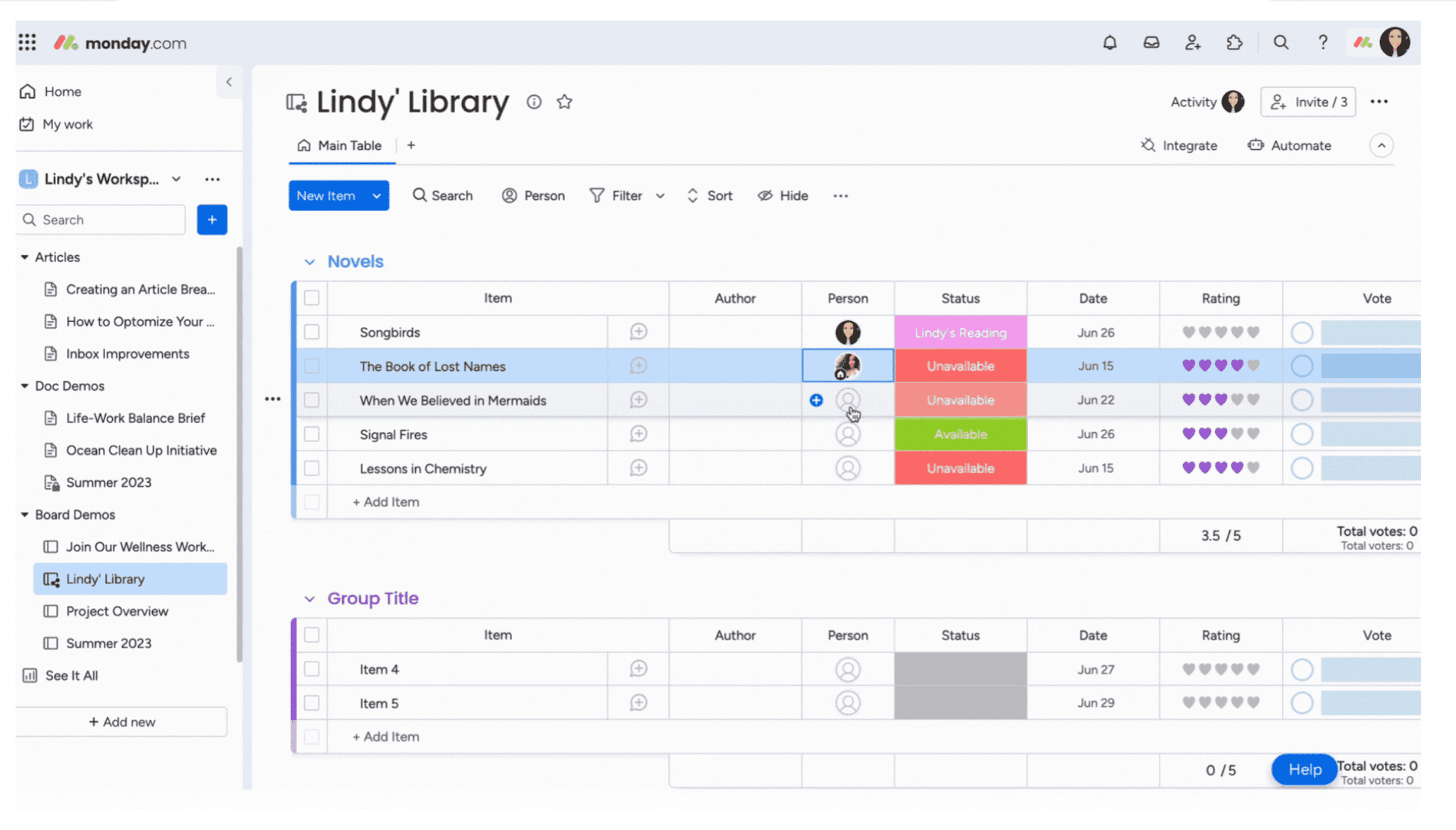

While designing high-fidelity designs, I took some insights from the similar workplace platforms like Monday for example. This helped to understood which tools and parameters were the most used and how efficient they were.

Keeping the design guidelines in check, I made sure the screens were not actually blocking to much of the person's view because they were supposed to aid the user in working and obstruct them.

Experimenting with how much of the color gradient based on brainwave patterns should be visible was a challenging task because a little bit of less and the user would not see it their semi-focused vision angle and if a little more, it would interfere with the user's attention and loose it's purpose.

INITIAL USER INTERFACE 🛜📺🔜

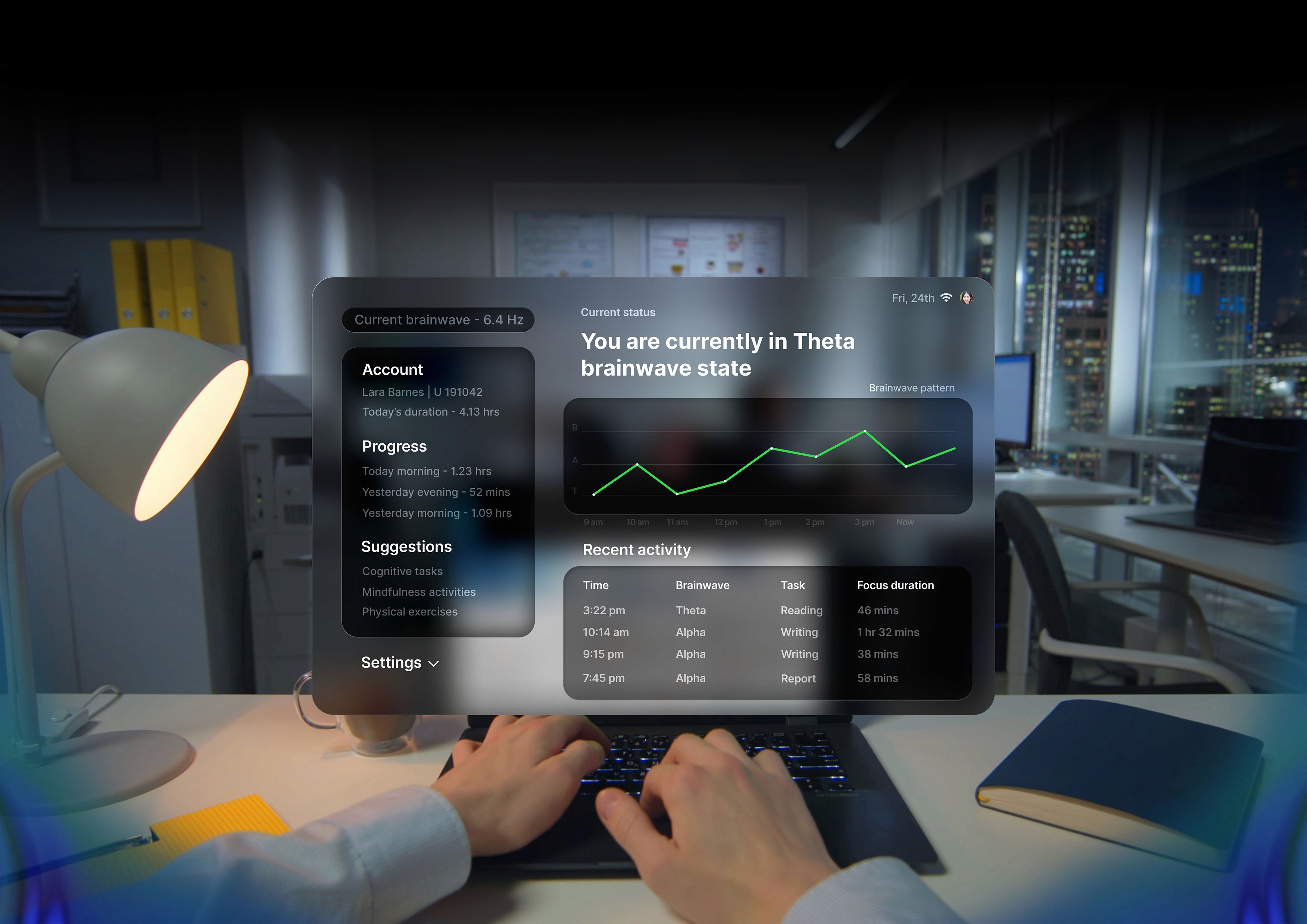

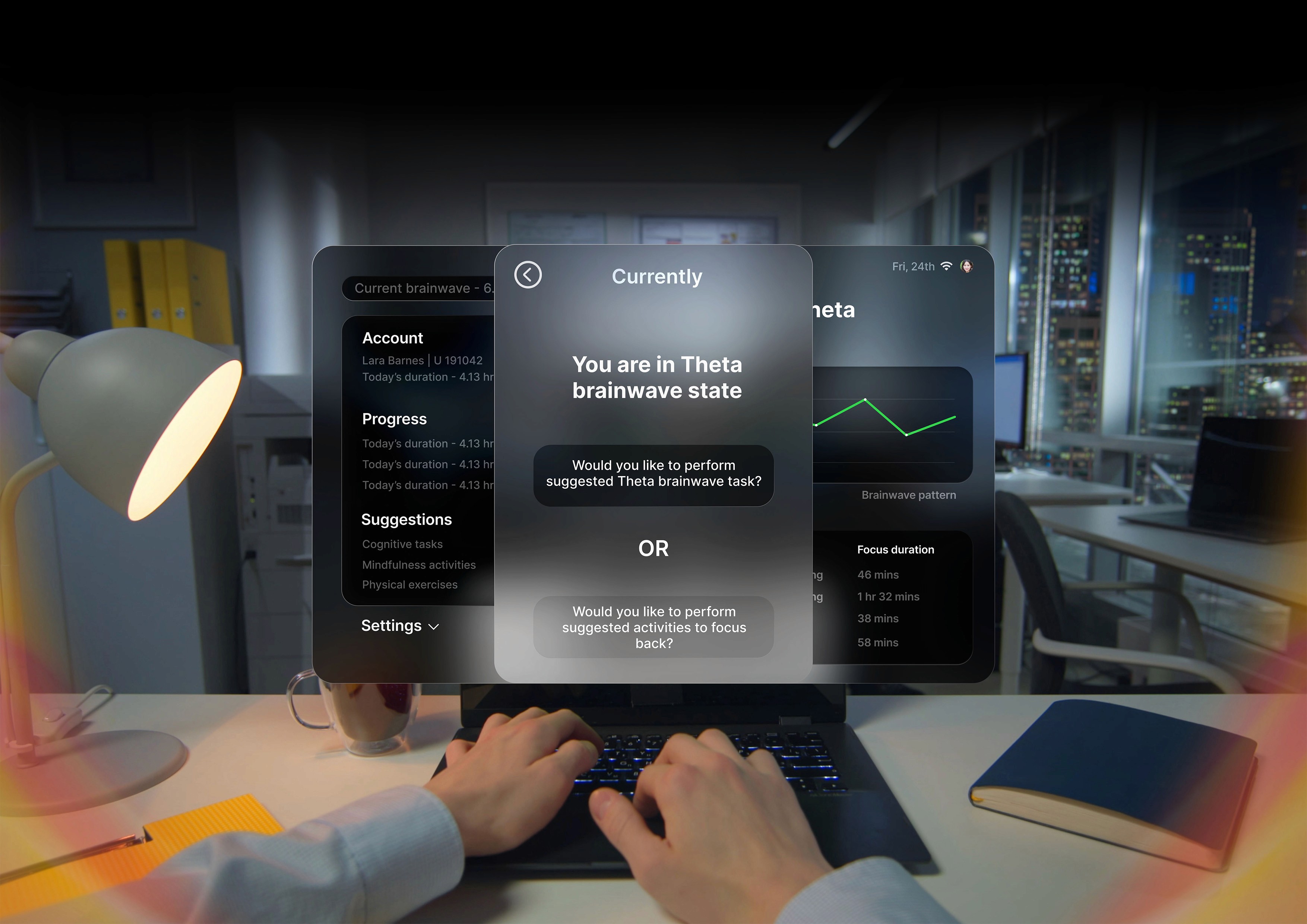

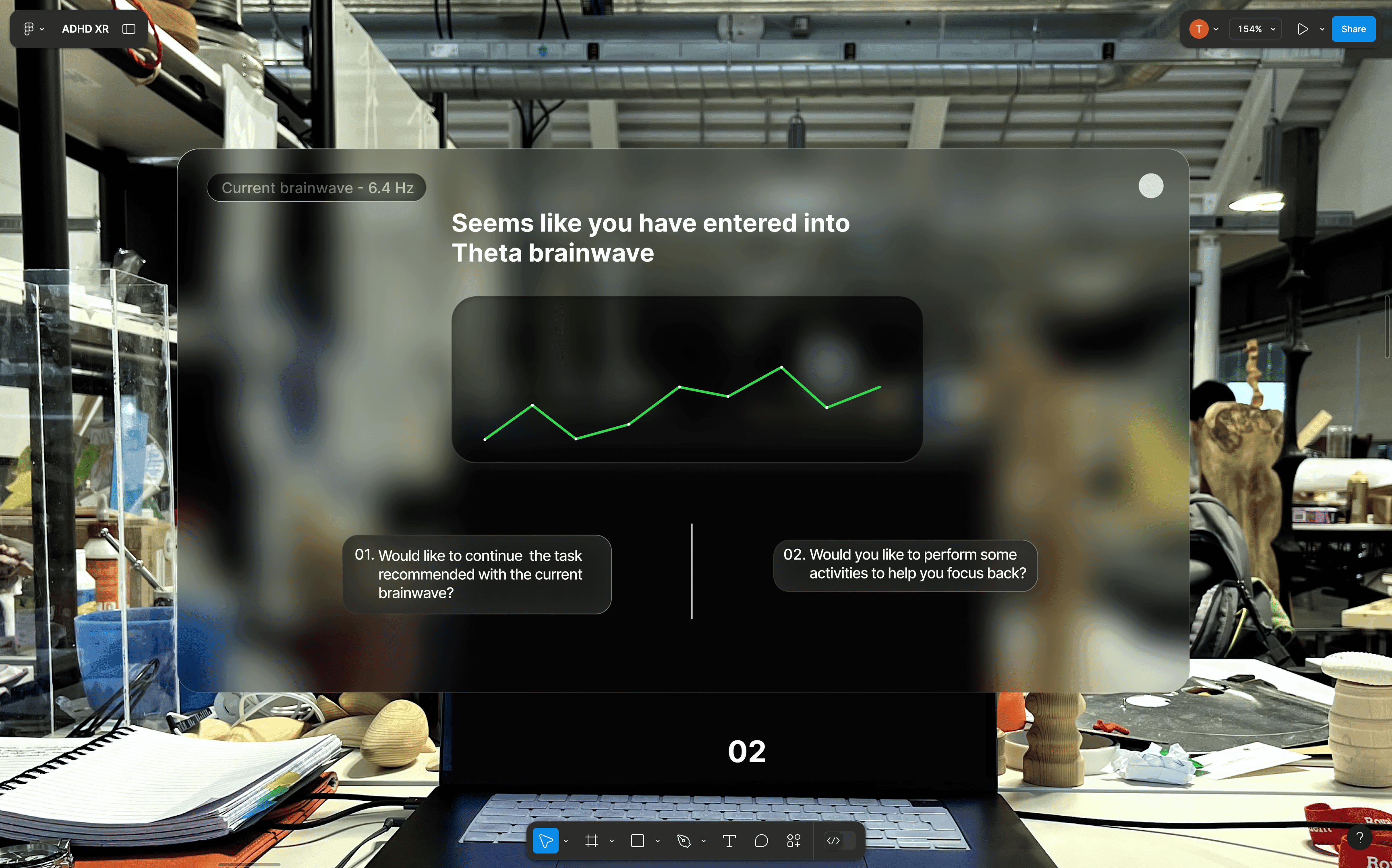

Next I created the user interface that would let the user know about their brainwave pattern. Recognizing this, it would then suggest them appropriate tasks that were suitable for their current state. My aim was to keep the screens at minimum and be displayed when they are absolutely required, so that people can focus on their work.

Moreover, I understand that there would be ethical and privacy concerns about other people's brainwave states but I am sure we could come up with a solution that benefits mental health, the employee and the employer.

BRAINWAVES

VISUAL STIMULI

BRAINWAVES & VISUAL STIMULI 👁️🧠👓

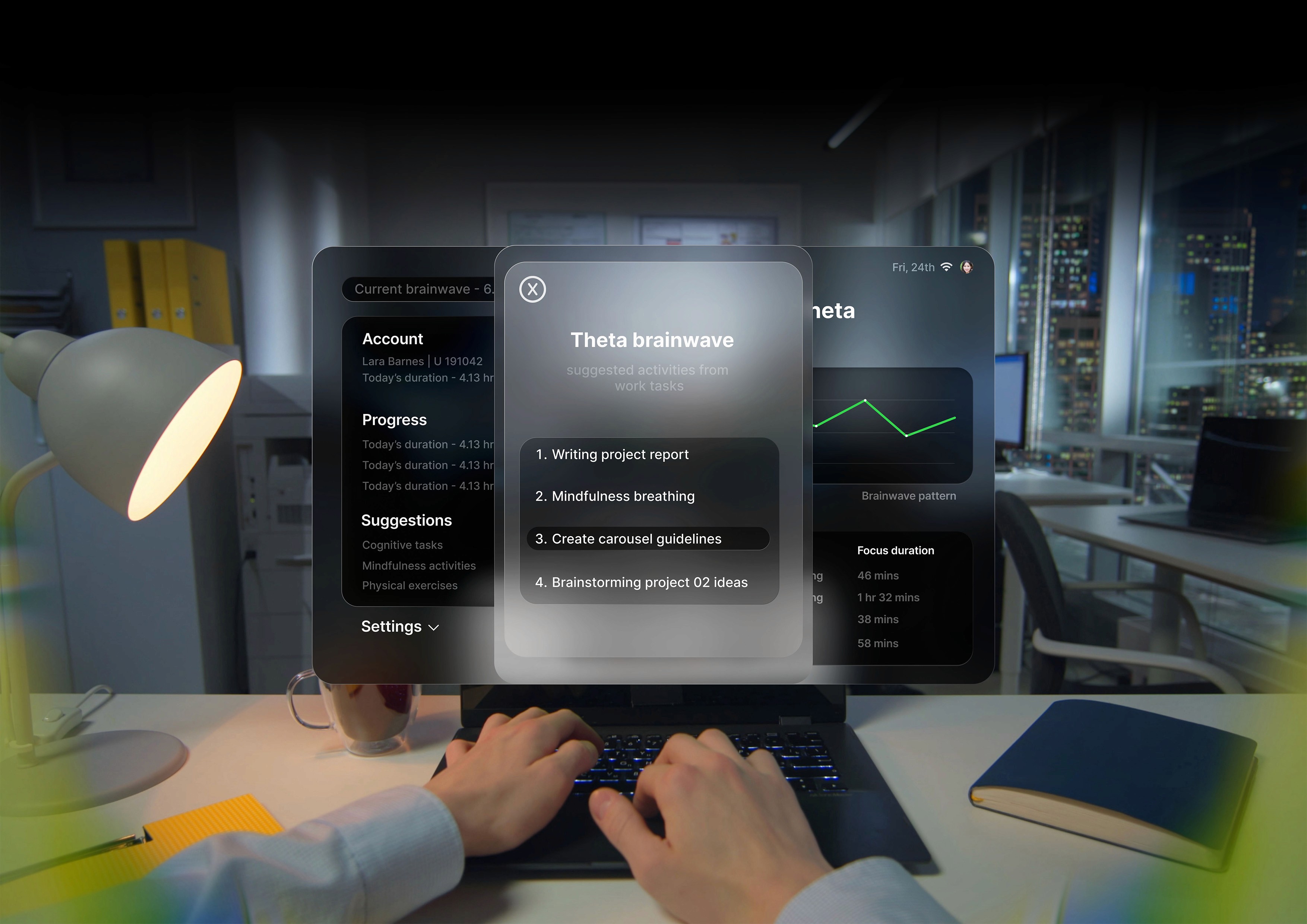

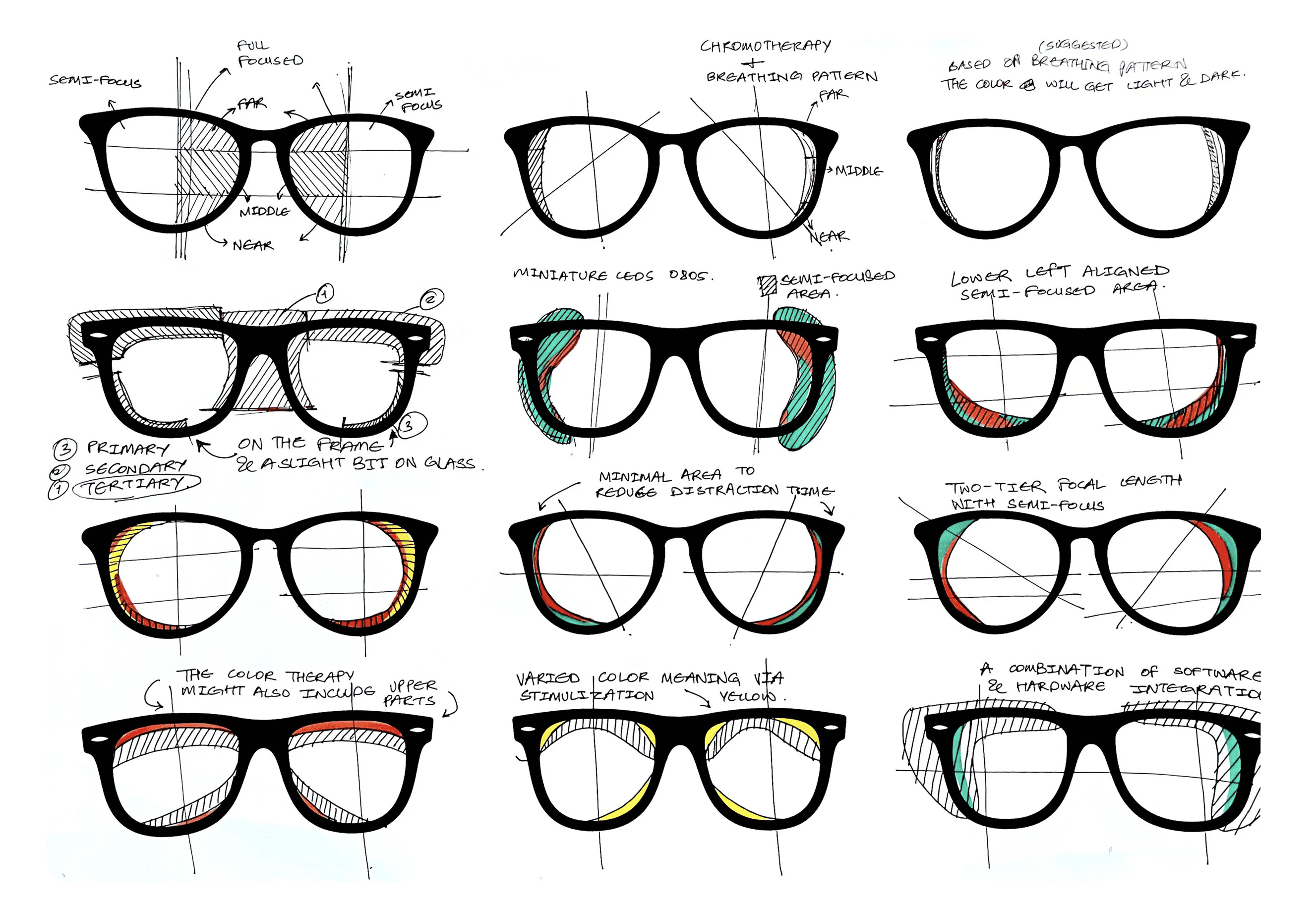

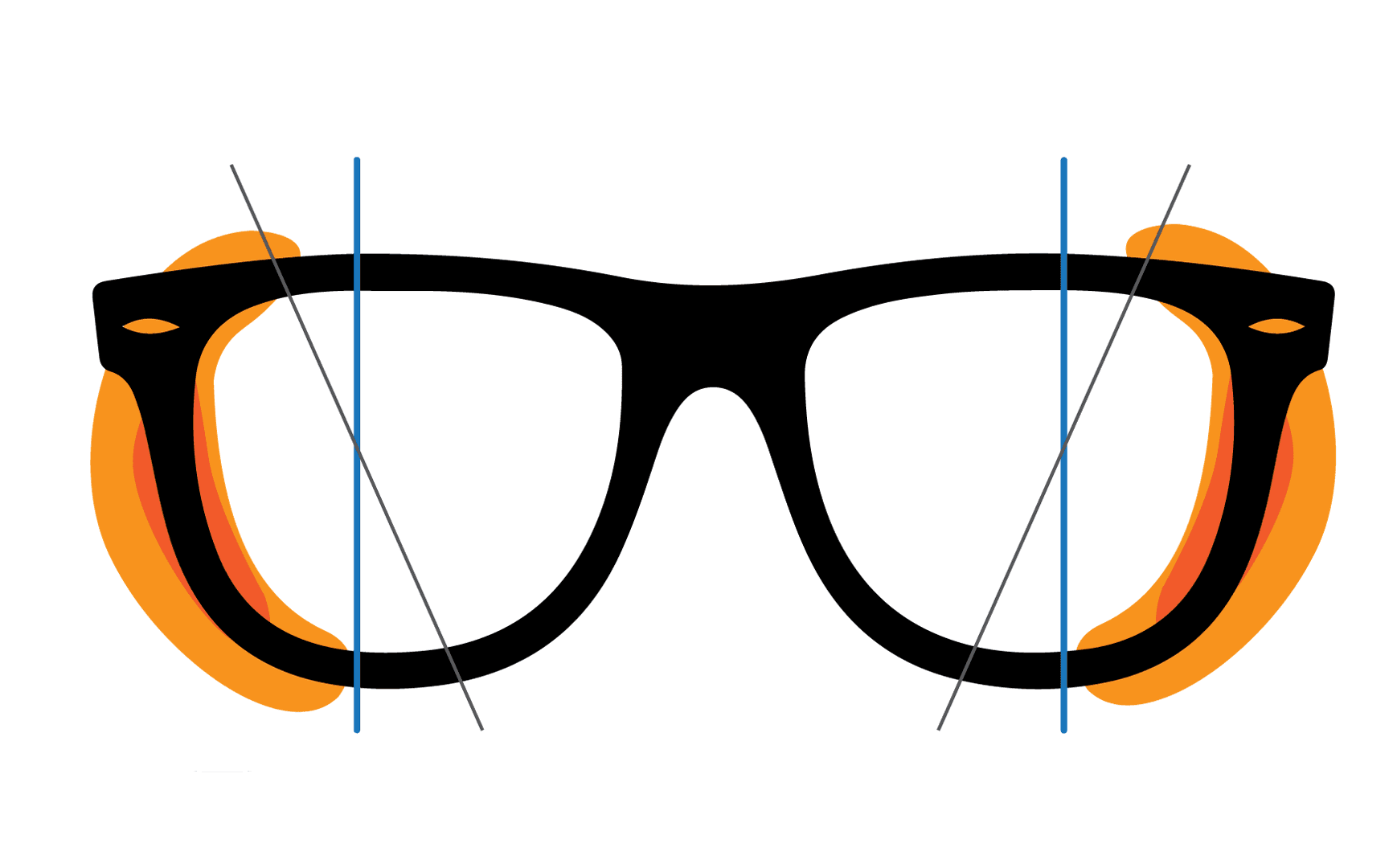

The visual stimuli is placed in the semi-focused area of the human vision angle so that the user can focus on their task but simultaneously be aware of their brainwaves patterns.

This way users can get live feedback of when they get distracted or zoned out with the help of changing color gradients on the side of their vision, indicating them to switch to a different task suitable for their current brainwave state or take a break

Final working prototype that interacts with biometric sensor to display colors according to the brainwave states of the user making it optimized individually for them in Mixed Reality.

WORKING PROTOTYPE 📟⚡️🔌

Final working prototype that interacts with biometric sensor to display colors according to the brainwave states of the user making it optimized individually for them in Mixed Reality.

The journey was not at all smooth which I had anticipated looking at the complicated dynamics of many different aspects working together. Since brainwave sensors were expensive and out of market reach due to ethical reasons, I used a heart-rate sensor to monitor the heart beats and then calculate the brainwave state in which the person was.

This way I could prototype my design and plus understand if the components were working well together.

The most challenging part of the project was to configure the sensors to interact with the color in real-time. This had a lot of hardware, software, coding issues to deal with while developing the project. The sensor had to be also soldered so that it completes the connection perfectly without any issues.

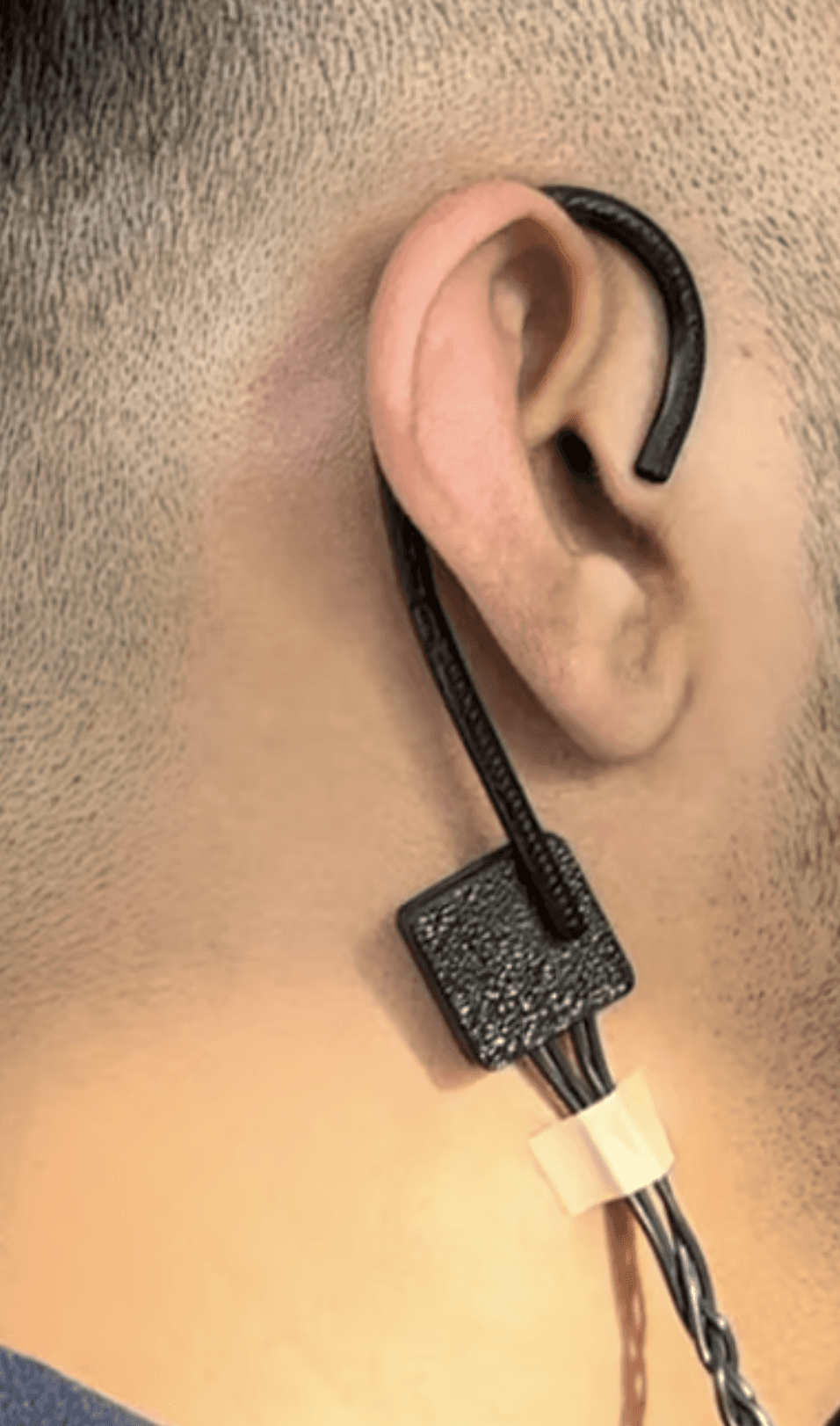

I also 3d printed a small housing for the sensor that could be attached to posterior auricular nerve so that we could track the heart rate and calculate the brain waves.

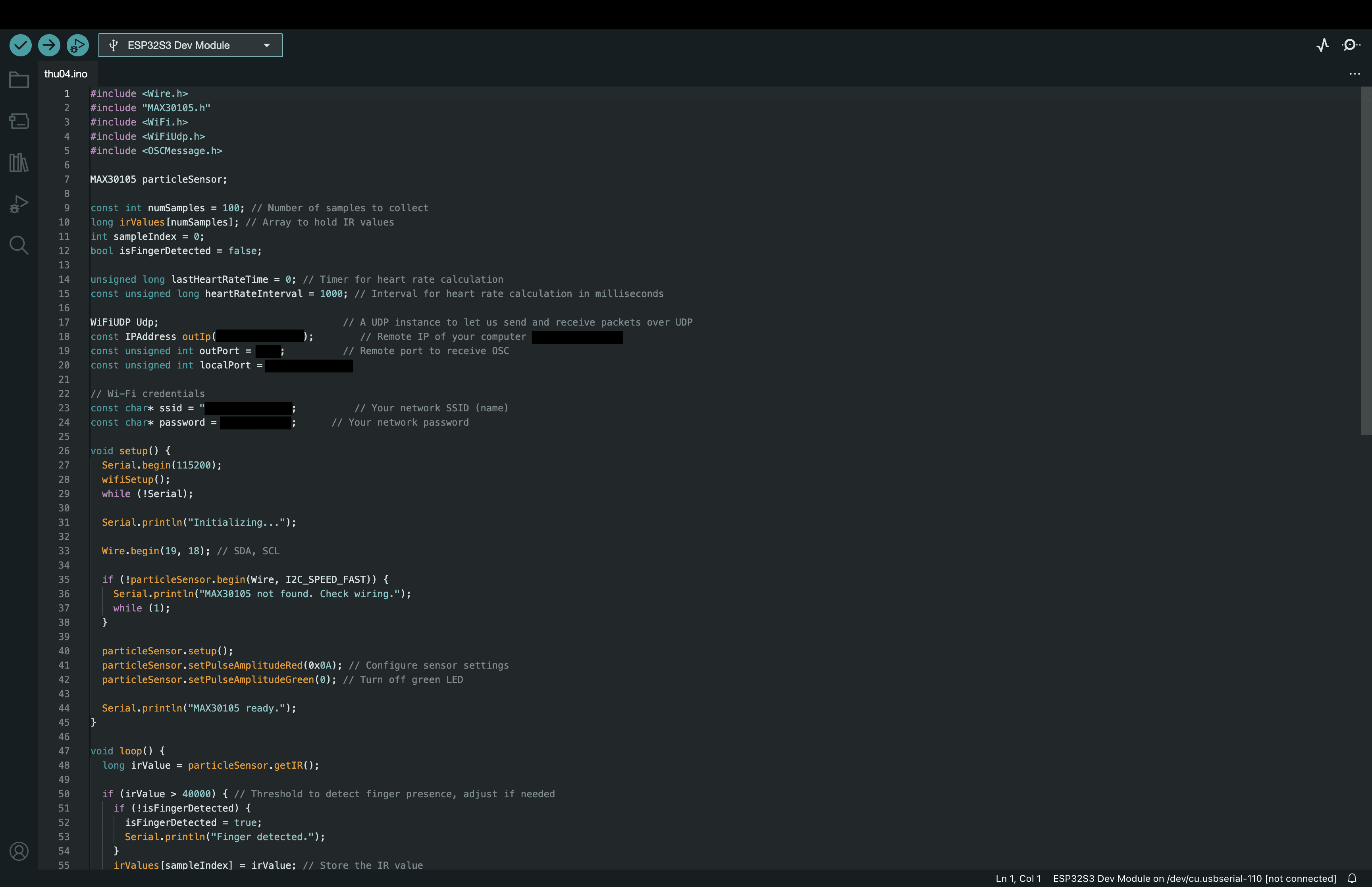

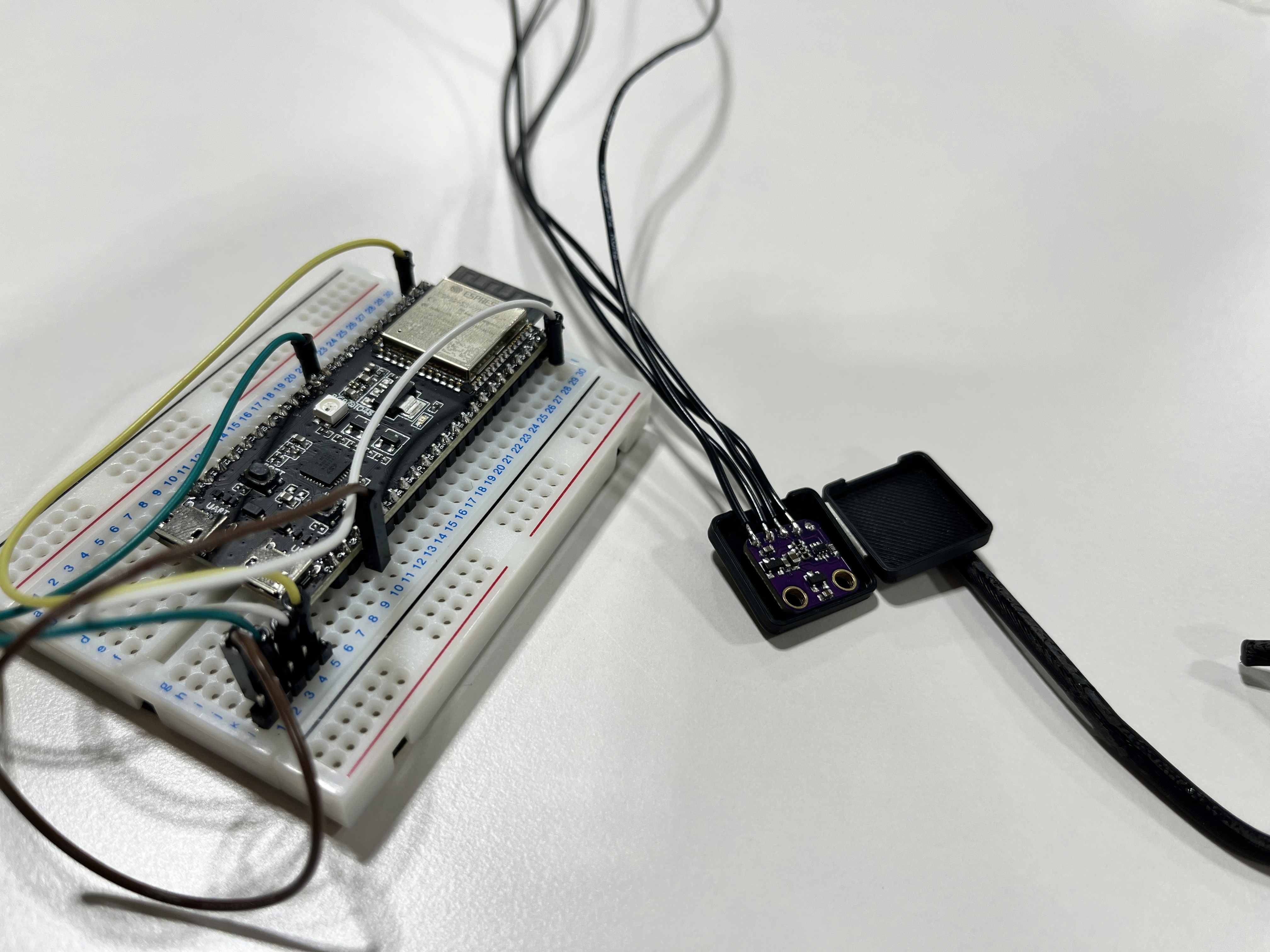

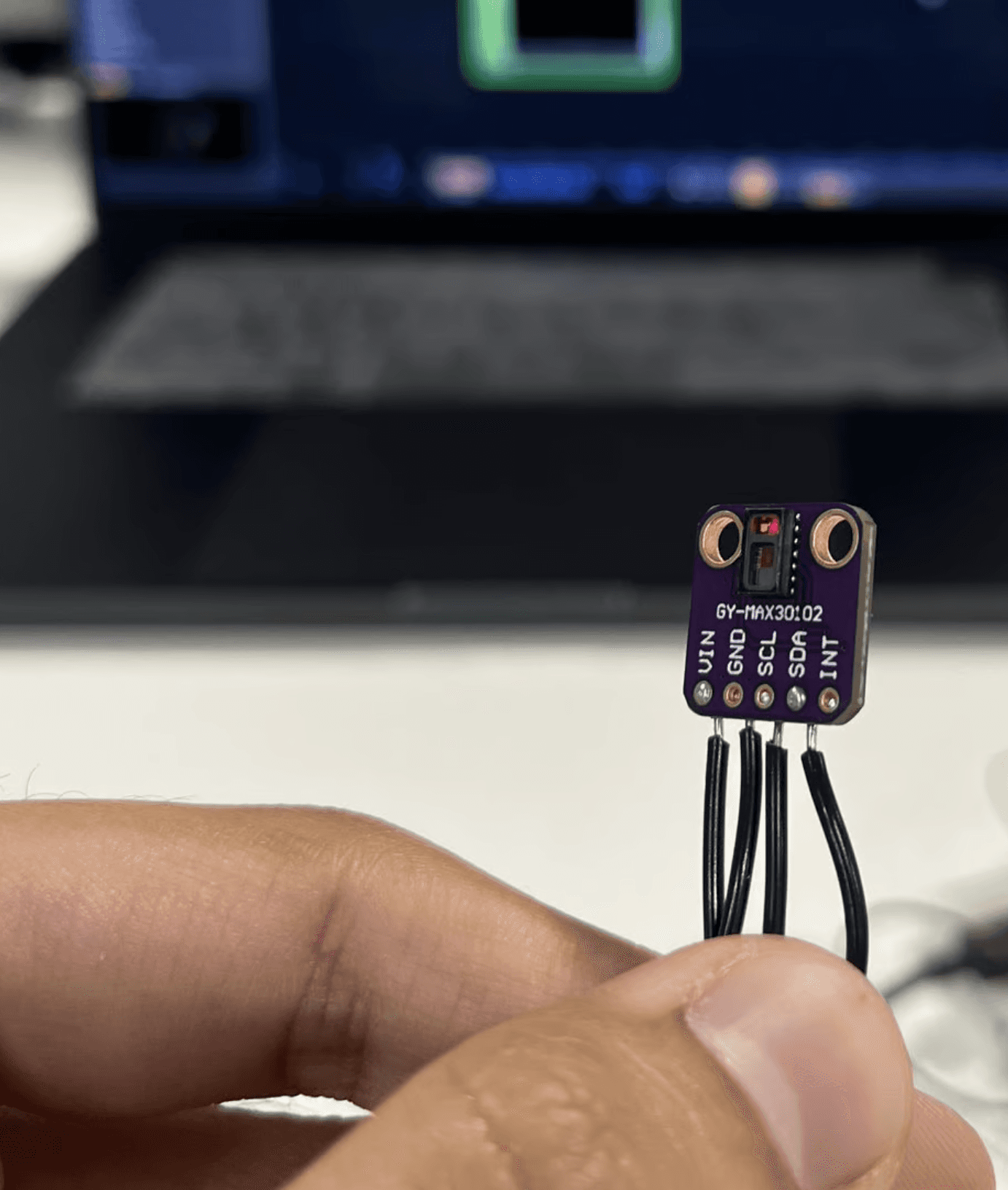

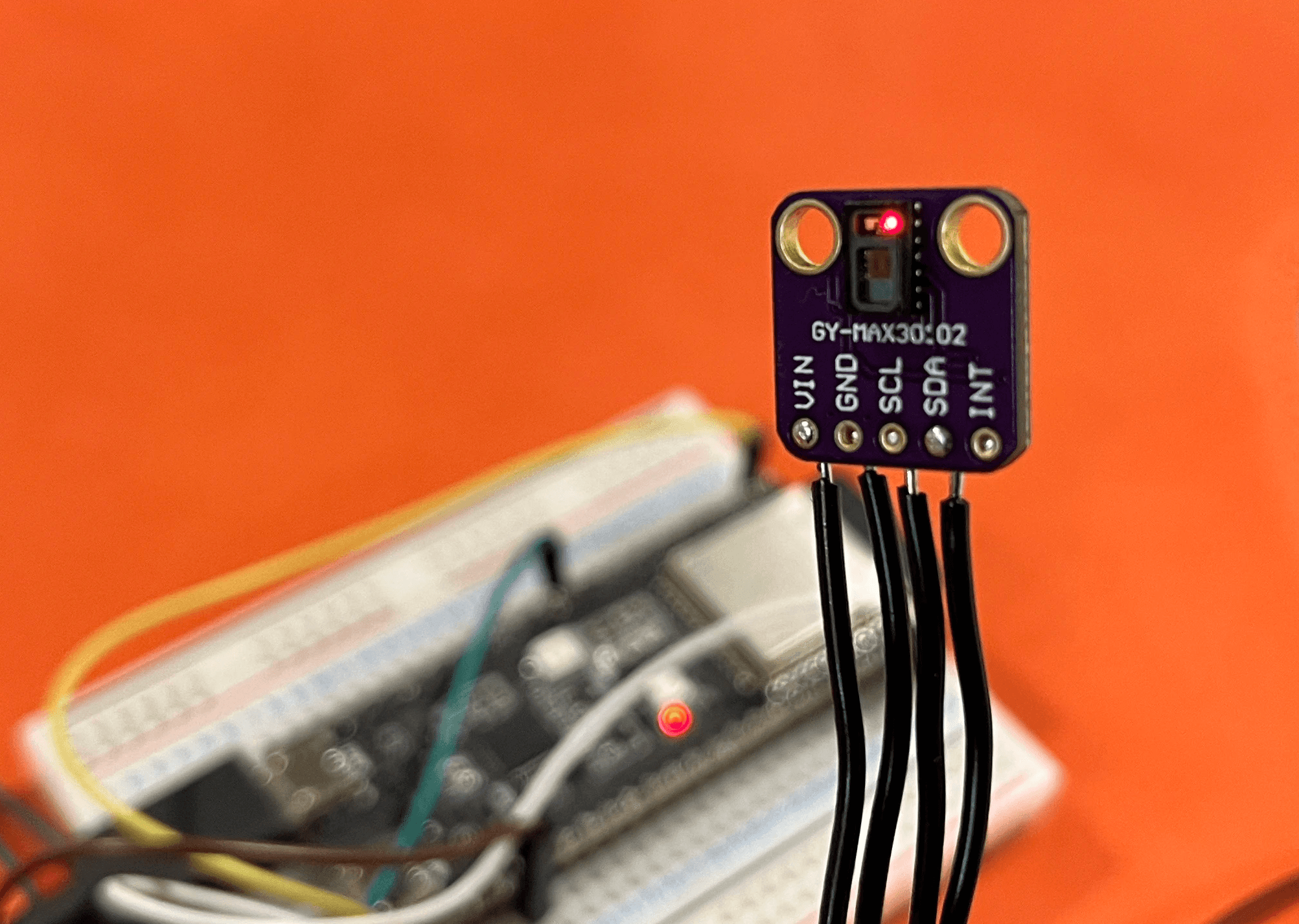

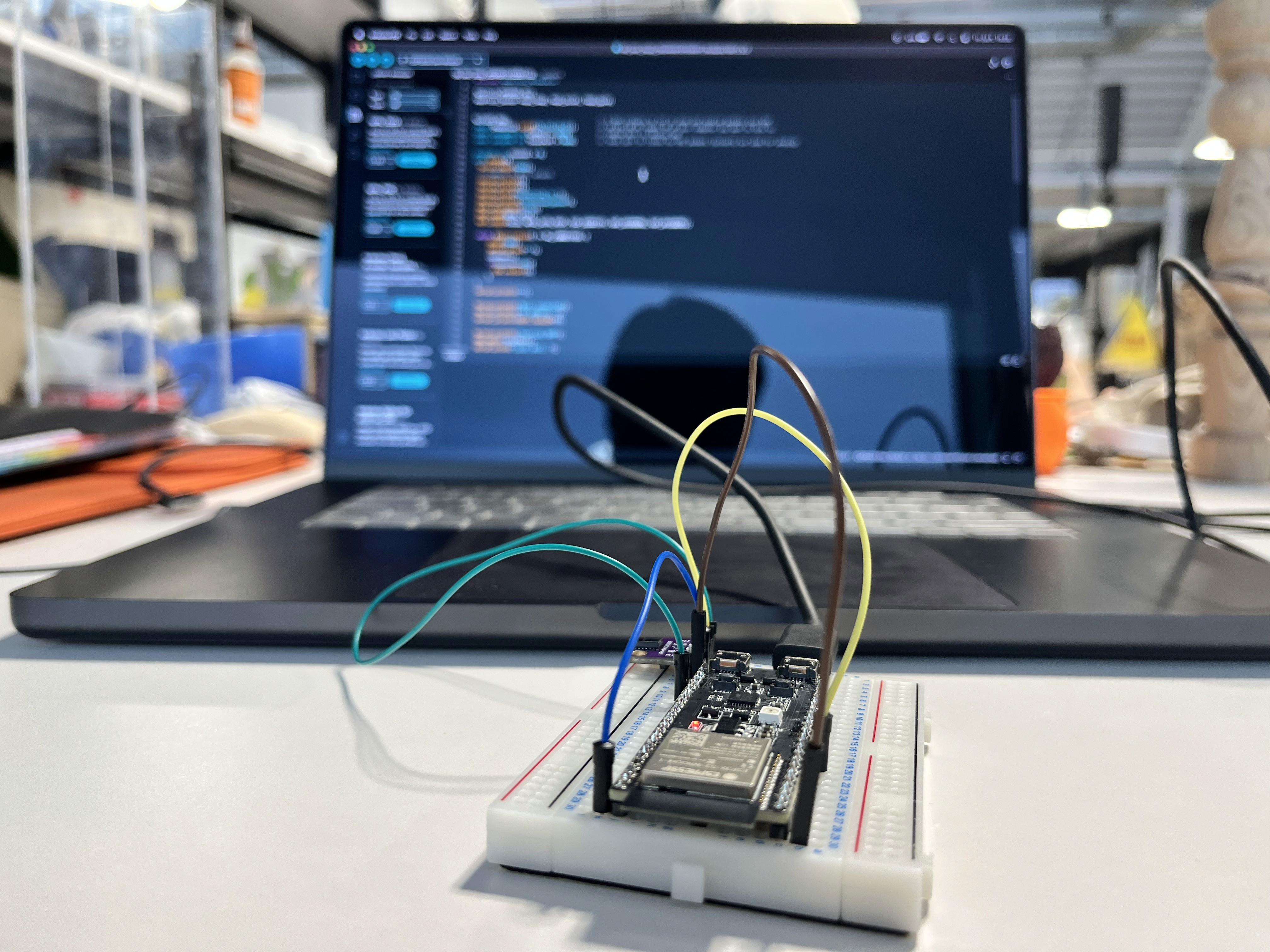

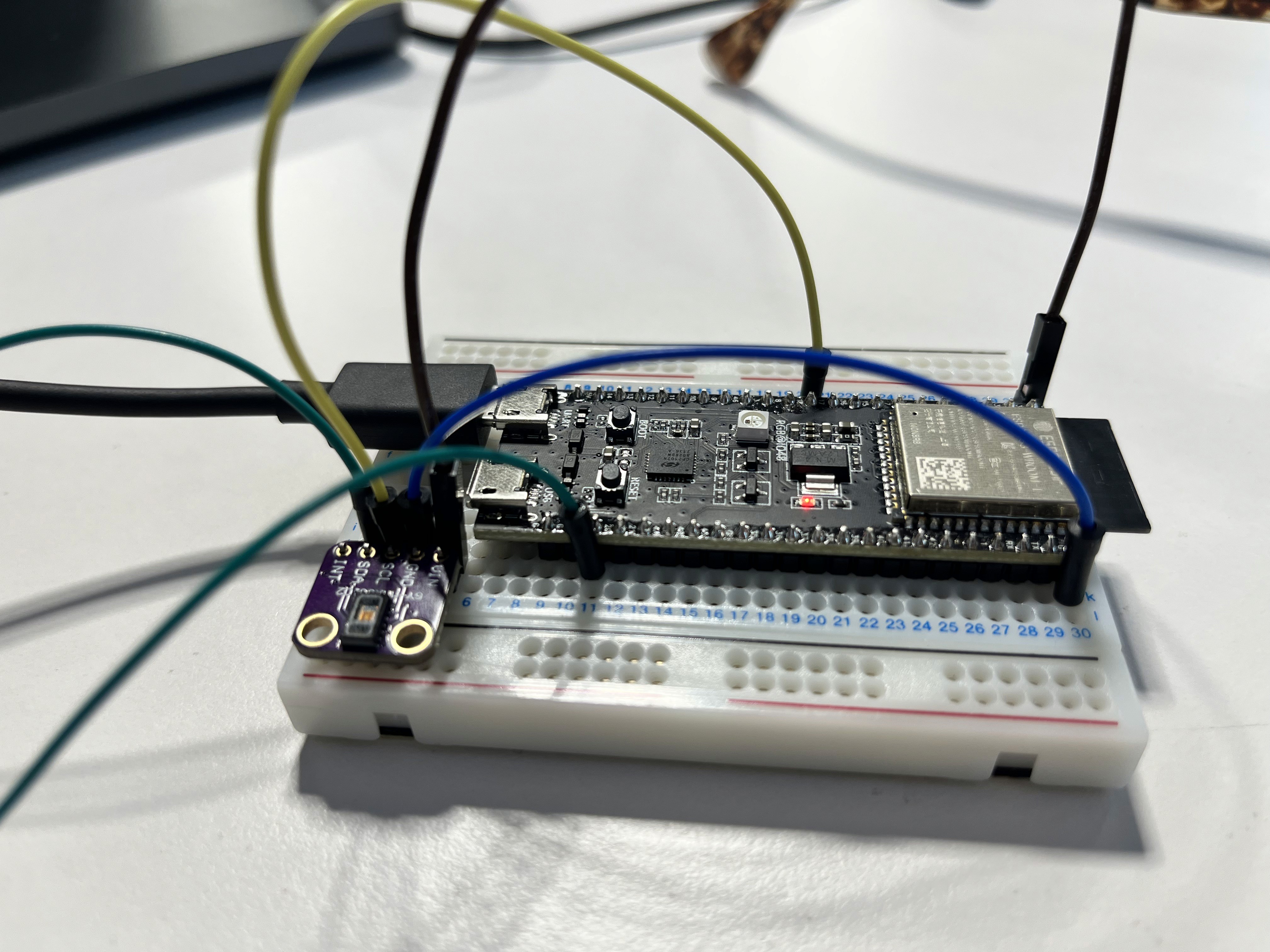

Here I used an ESP-32, Max 30102 heart rate sensor, Arduino IDE and Touch Designer for the color gradient.

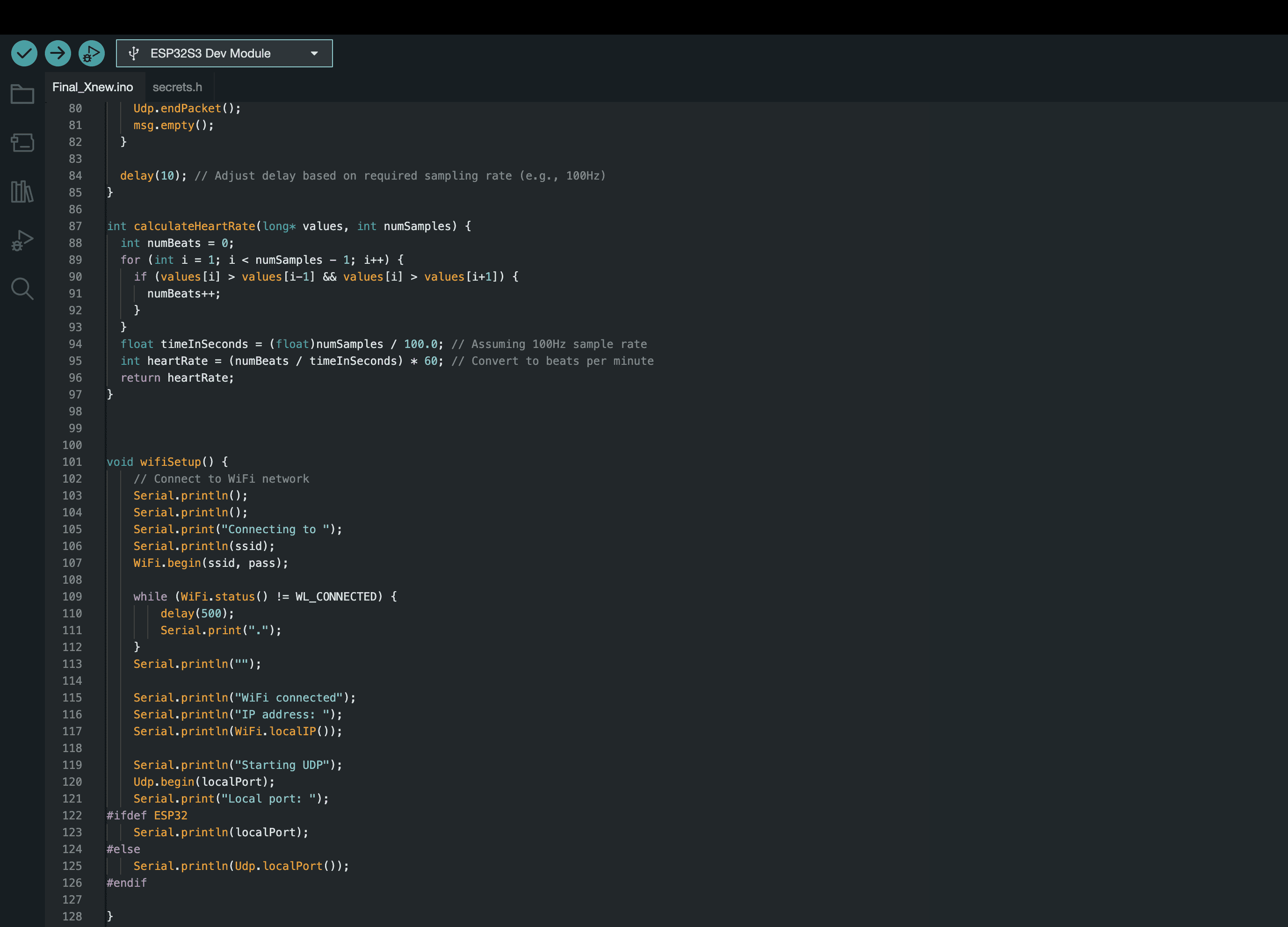

CODING INTERNALS 👩🏻‍💻💼💻

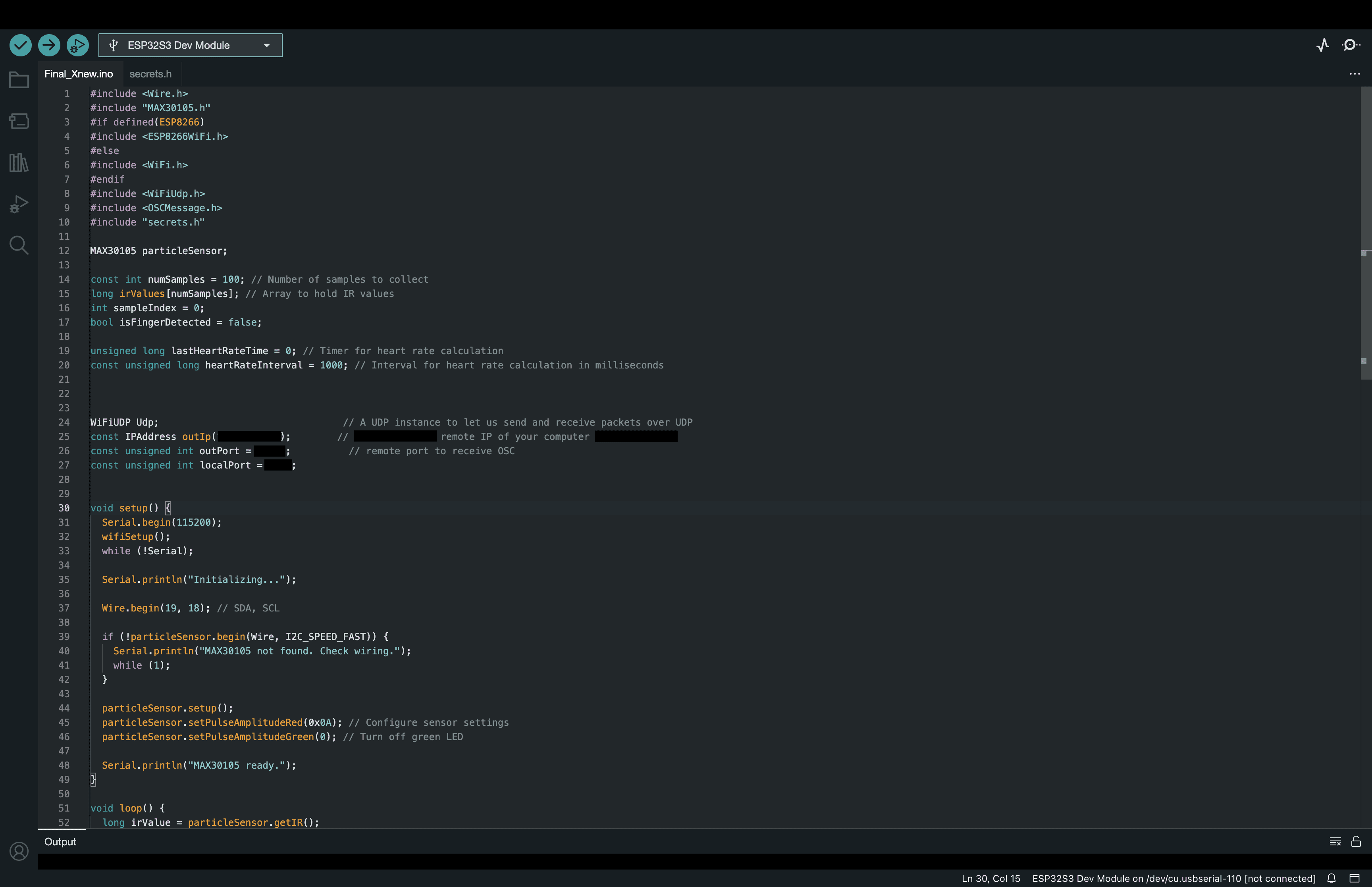

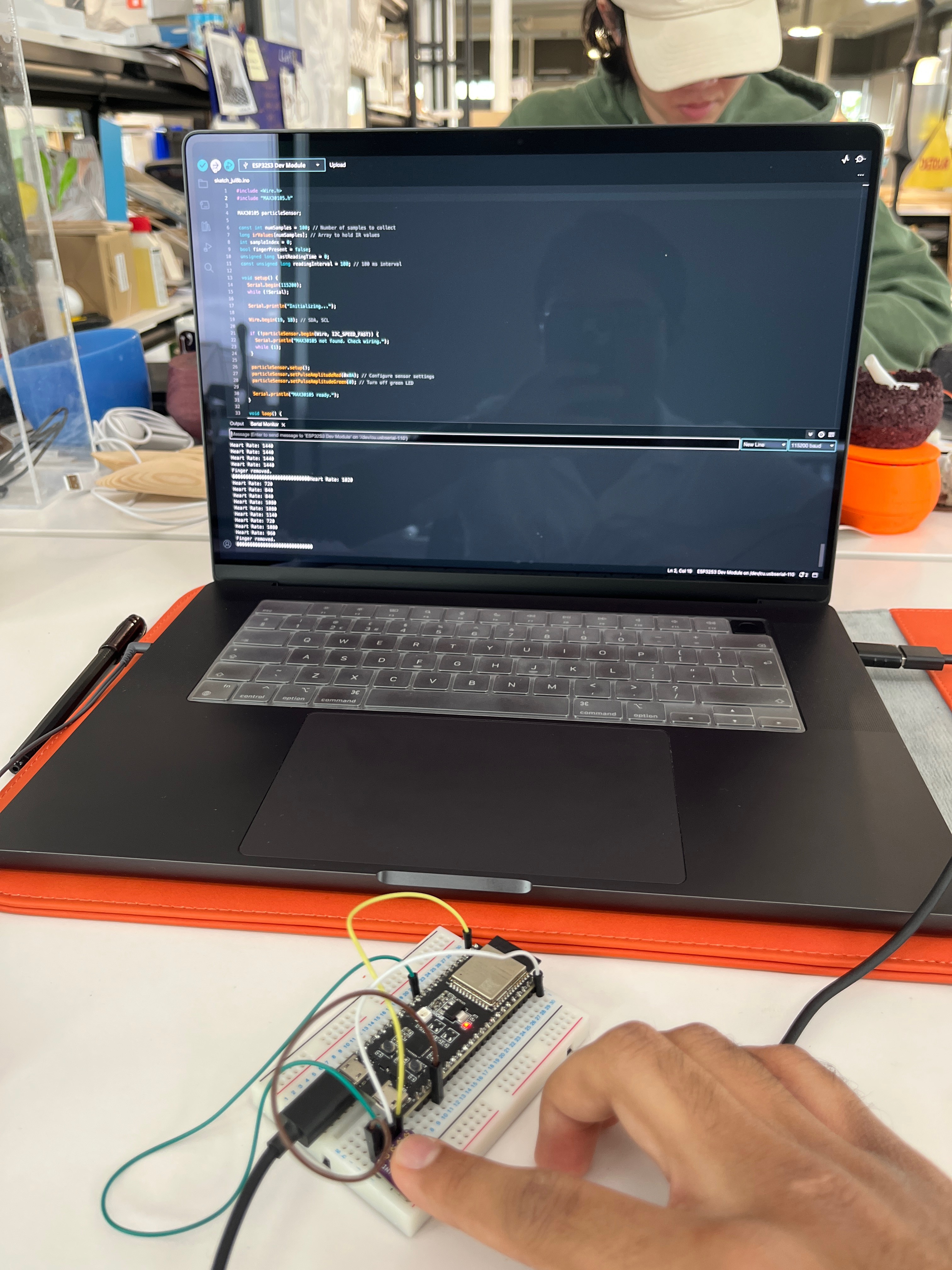

After 8 coding failures on new files every time, and numerous visits to White City campus’ creative coding consultations, finally I was able to match the code that worked specifically for my sensor and fulfilled the goal that I wanted.

Technician Kyle helped me with understanding and building the code and Hamid from Robotics research lab helped me soldering the connection together.

Hence, shoutout to Kyle and Hamid (RCA's technicians) :)

Somehow the code was not able to connect to the school’s Eduroam wifi an also not to my personal iphone hotspot so I had to use my friend’s android hot spot to transmit the data via wifi from the ESP 32 to Touch Designer software.

With a little help of ChatGPT, technicians and my knowledge, together we developed the code from scratch.

Finally it was configured the right way to wirelessly transmit the heart readings to Touch Designer and from there to the user's Mixed Reality device. I want to admit this was one of the most crucial moments during the project.

You find the prototyping videos at the link.

VISUAL INTERACTION 🤹🏻‍♂️🔜🔺

Now since the connection was established, it was time to put it altogether and test it on users. The sensor was coded to be ON all the time to continue reading user's heart beats and transmit wirelessly.

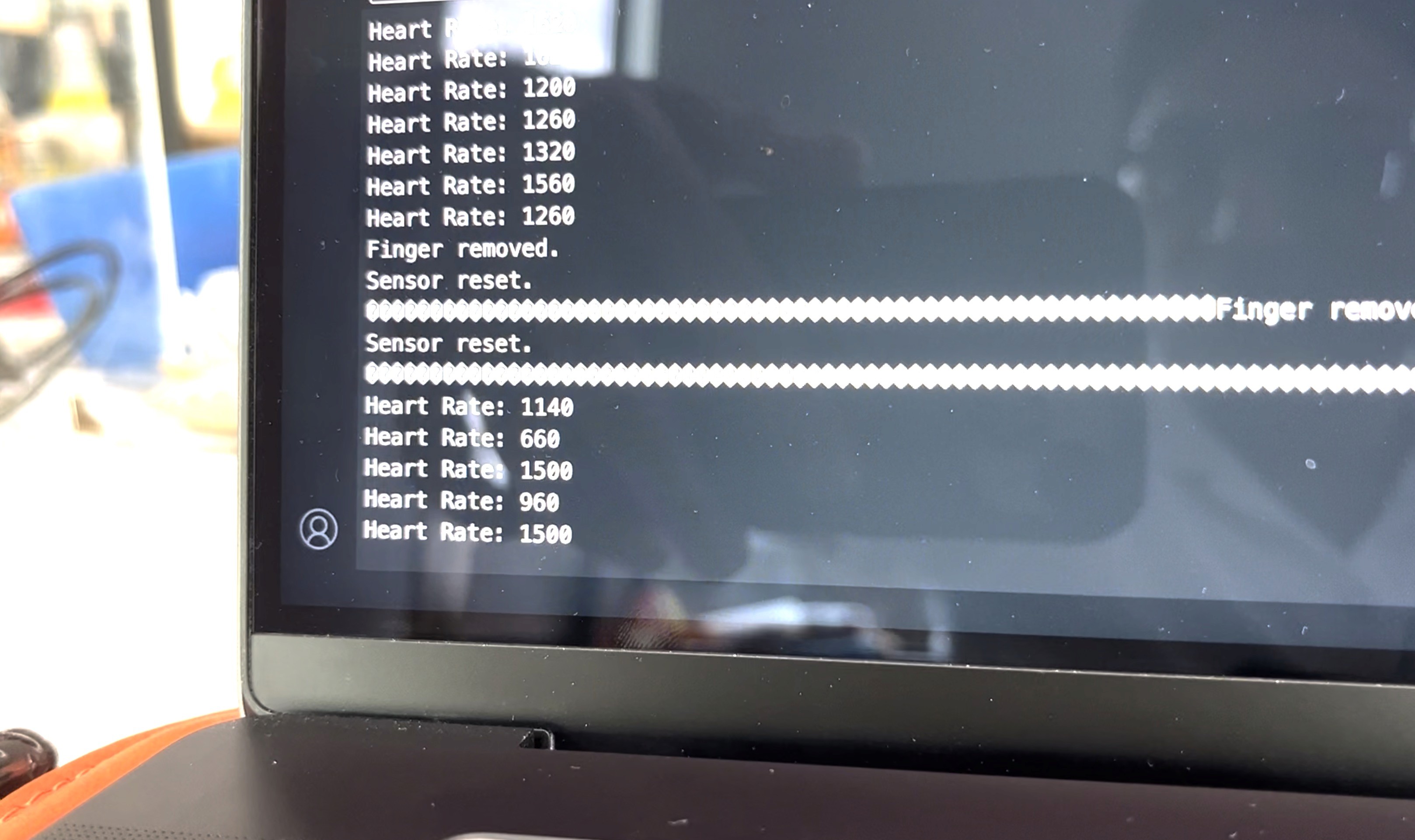

Successful heart rate reading being captured. The value is a complex calculation for the touch designer software to understand it easily and use the right color in gradient to inform the brainwave pattern.

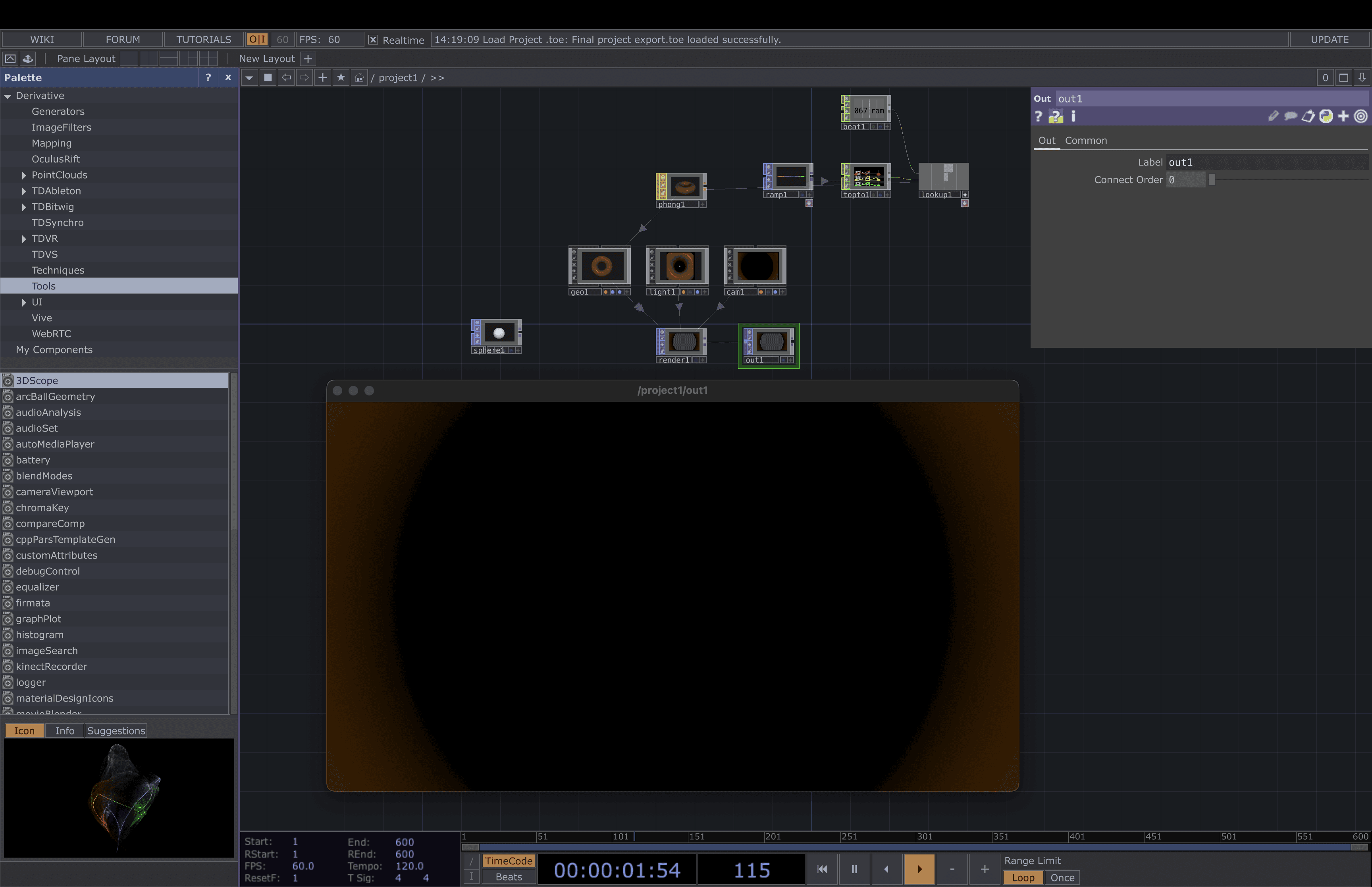

Touch Designer's simpler node structure used for the color gradient. Based on your heartbeats it would change and transition into different colors depicting the change of your brainwaves.

Please find the prototyping videos at the link.

FAILURE #1☹️🚫🔎

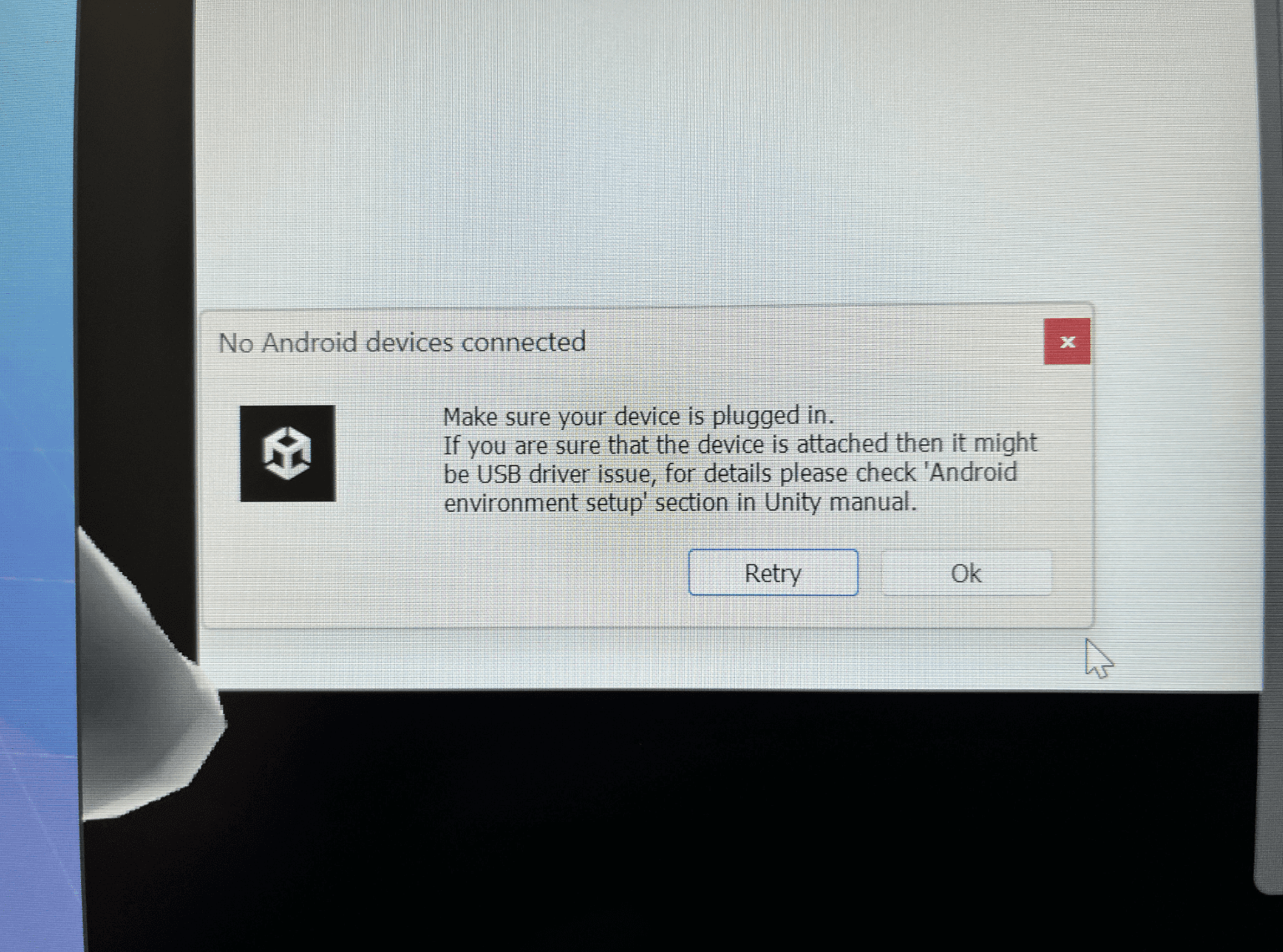

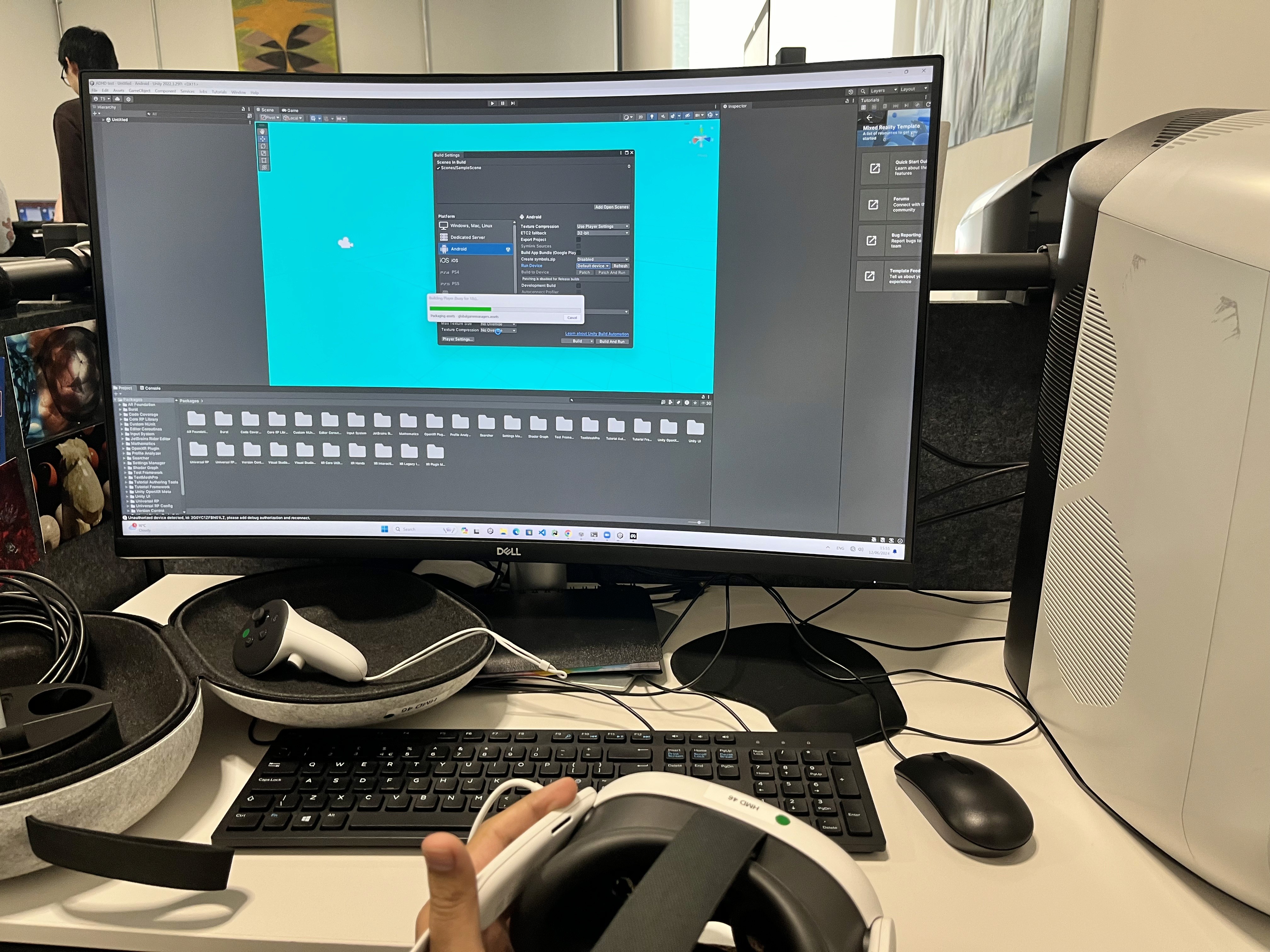

After the entire project development and setup in unity, the final test run failed multiple times due to an unrecognized technical error in the headset on the development phase. The solution to that turned to completely wipe out the headset via factory reset and try again.

Even though the headset was new, driver issues still made a significant halt in the overall progress of the project.

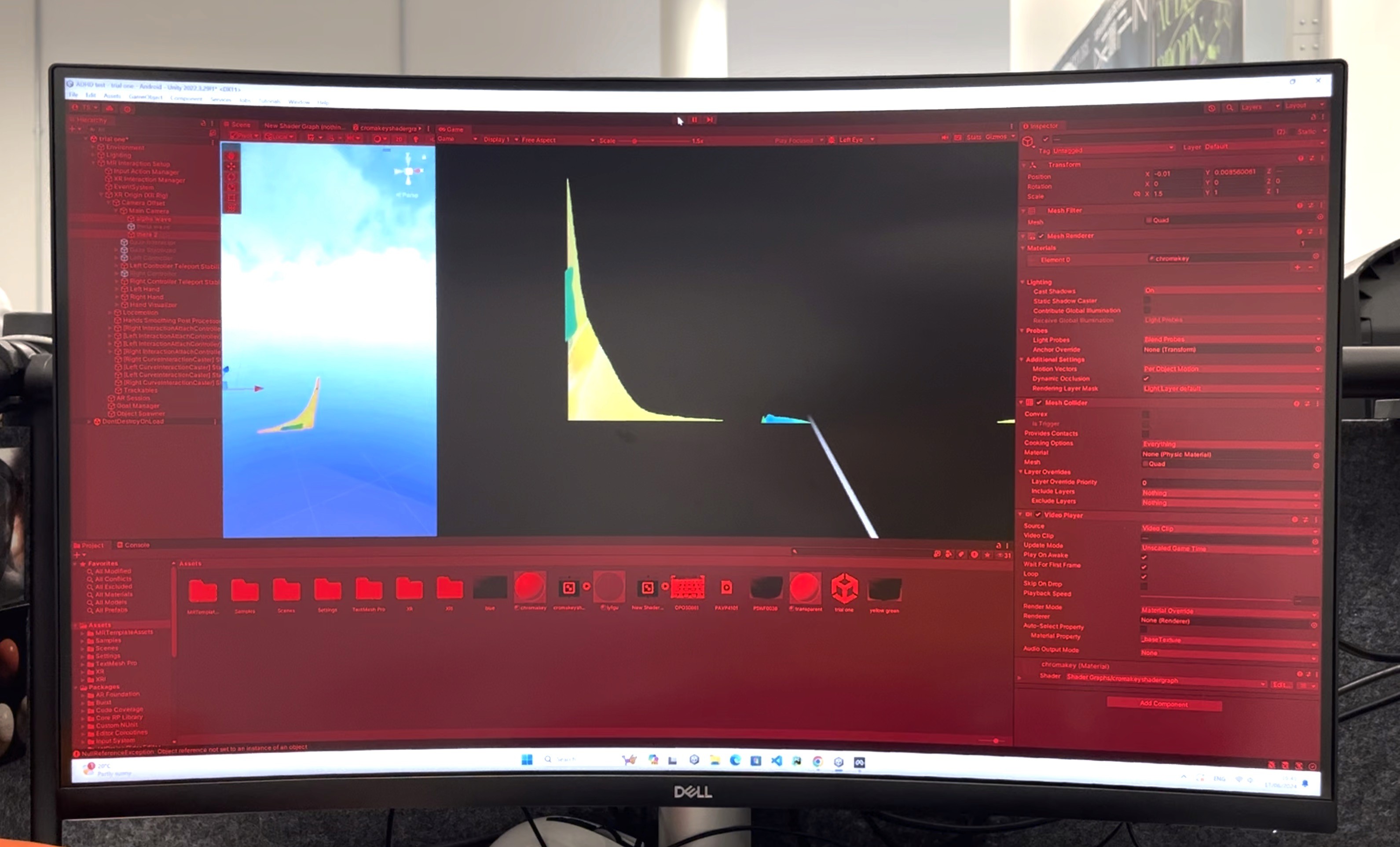

This was after the Apk was installed on the device. I could preview it on Unity's main screen but the gradient kept failing to load at the right time.

SUCCESSFUL TRIAL 😁🏆🔜

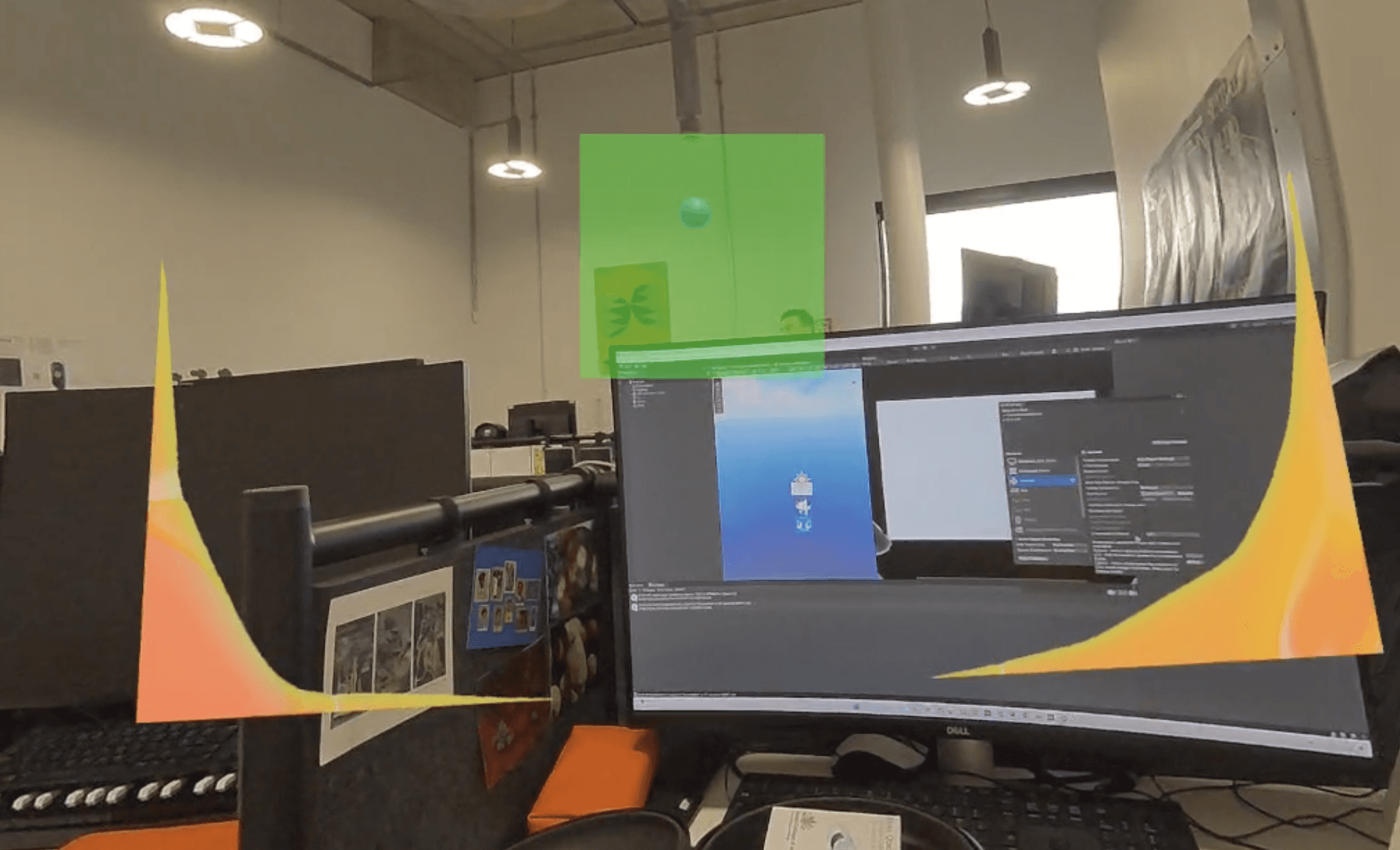

The first successful trial was done with references to a green quad and a sphere in space to understand the head tracking and direction movements of the person.

This time the screen was prototyped to move with head, always keeping it front and designed to interact according to brainwave patterns.

PROTOTYPING MIXED REALITY IN UNITY 👓🎮🚀

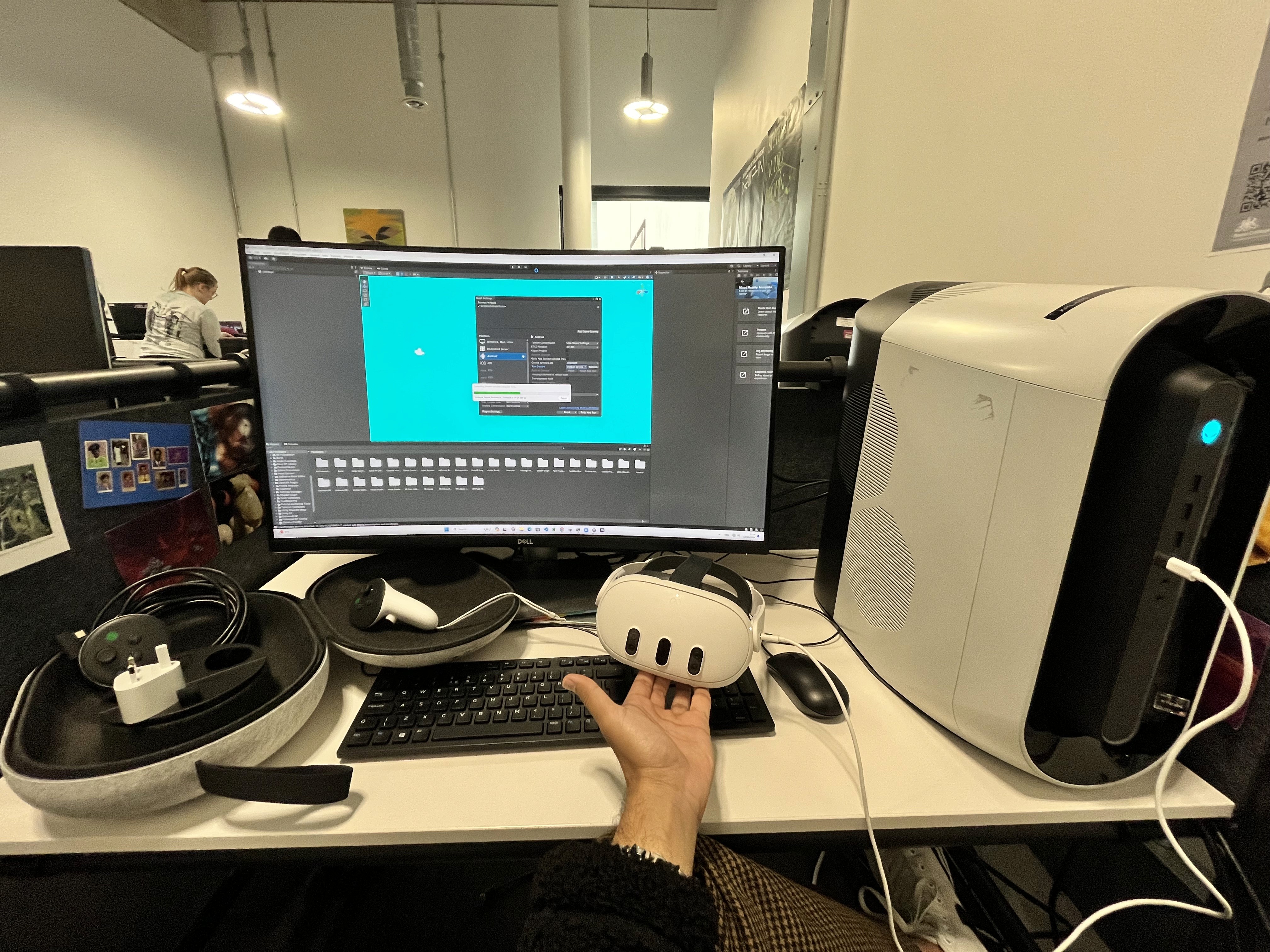

I started prototyping in the Meta Quest 3 to understand the chromatherapy as well how do colors interact with the surroundings. Although the setup was a little smooth, there were a few failures on the path that I did not anticipate.

BRAINWAVE COLOR SCALE 🧠🌈📡

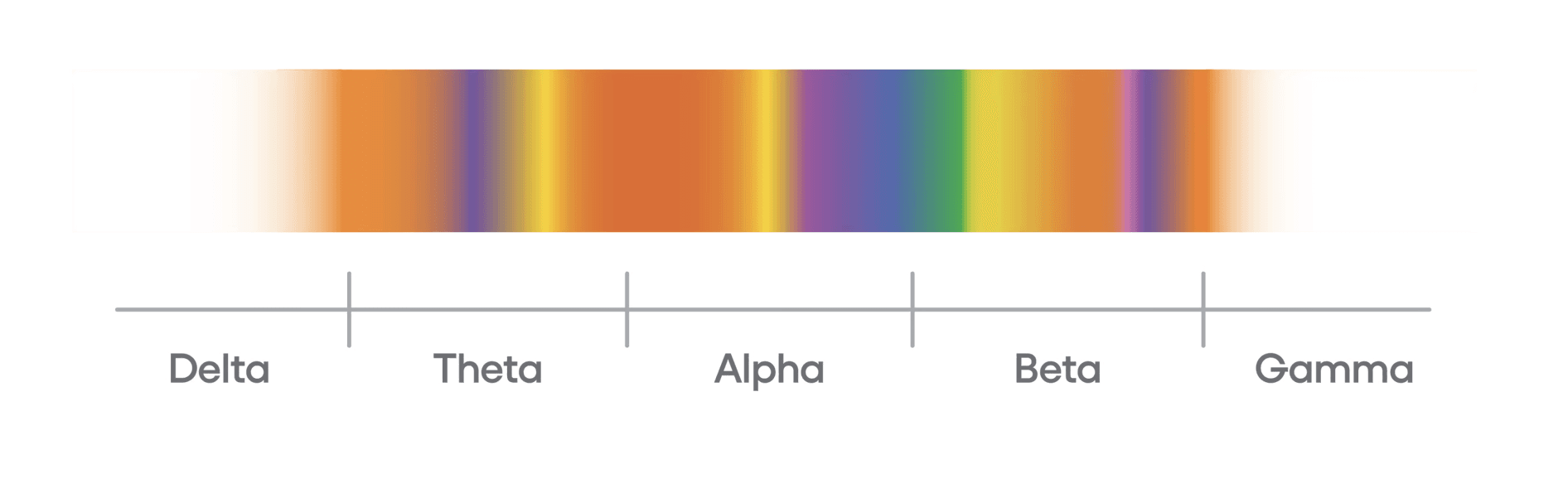

To understand the classifications of brainwaves and related colors, I also designed a brainwave color scale for users to distinguish their brainwave pattern with identifying frequent colors appearing on their semi-focused vision angle.

As I explained previously, colors and our emotions interact dynamically with the surroundings. Leveraging this, the therapy turned out to be more positive and individual-based as I had aimed at the starting of the project.

USER TESTING ✍🏻🧑🏻👓

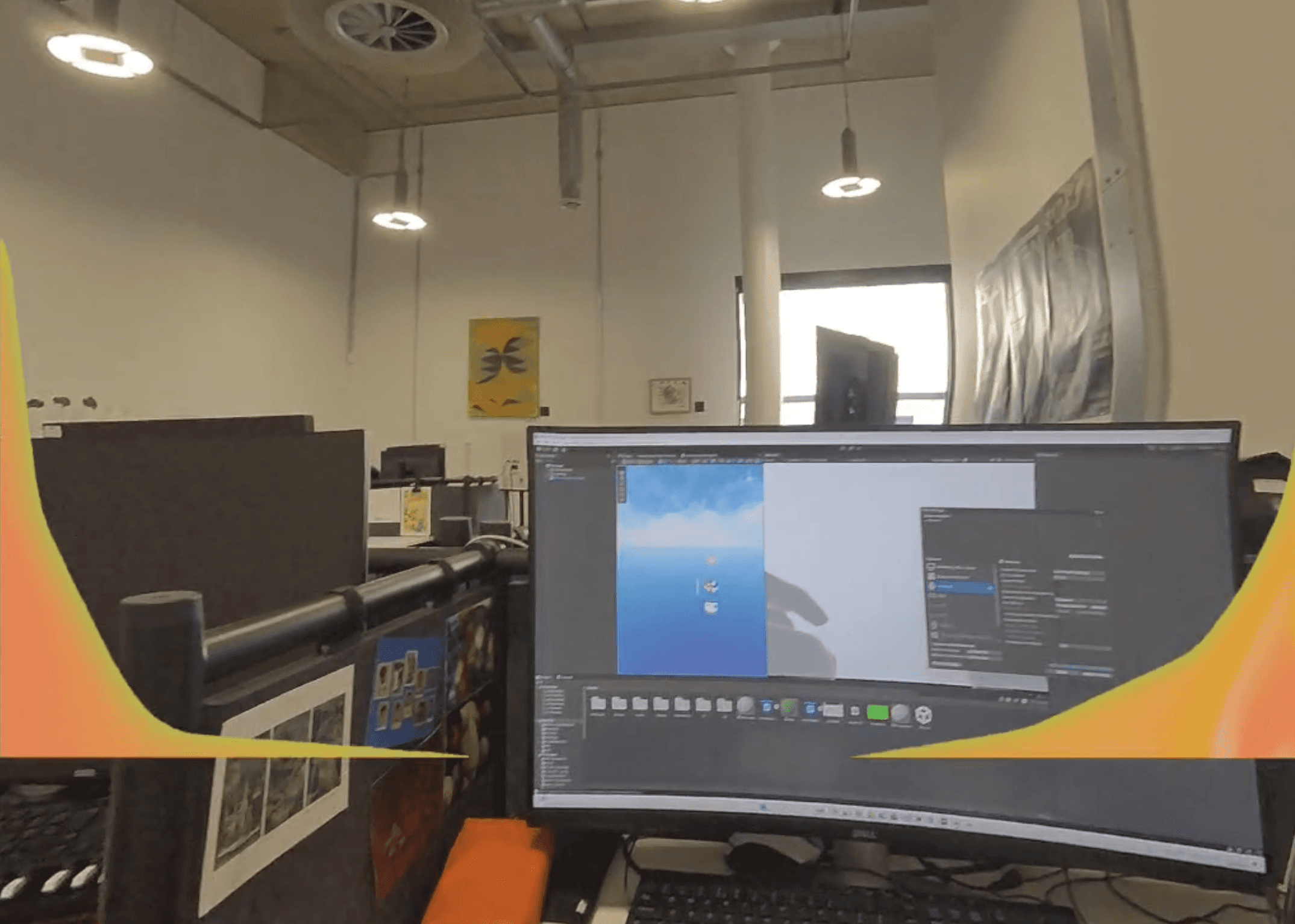

The placement of the color gradient is well-executed, as it stays out of the user’s focused vision while still allowing them to notice the displayed color.

However, when it comes to testing this setup in a work environment, the current headset is too bulky and heavy for people to wear comfortably while working.

Although the pass-through quality has improved, it still falls short of allowing users to see clearly enough through the headset to read from their laptop screens and perform tasks effectively.

I believe that as Mixed Reality technology advances in the coming years, more compact and lightweight glasses will become available.

At that point, we can conduct more rigorous user testing in real-world conditions and refine the design.

NeuroFocus XR also won the Design Intelligence Award 2024 under Honorable Mention category. This was a collective success of everyone involved in the project from start to end who persevered through difficulties only to see this success. I dedicate this Award to them as a Thank you gesture.

DESIGN INTELLIGENCE AWARD 2024 🏆✌🌏
